The carpenter's new guide: being a complete book of lines for carpentry and joinery (1850)
Nicholson, Peter, 1765-1844. [from old catalog], Johnston, William, architect. [from old catalog] · Philadelphia, Lippincott, Grambo and co. · leaf 203

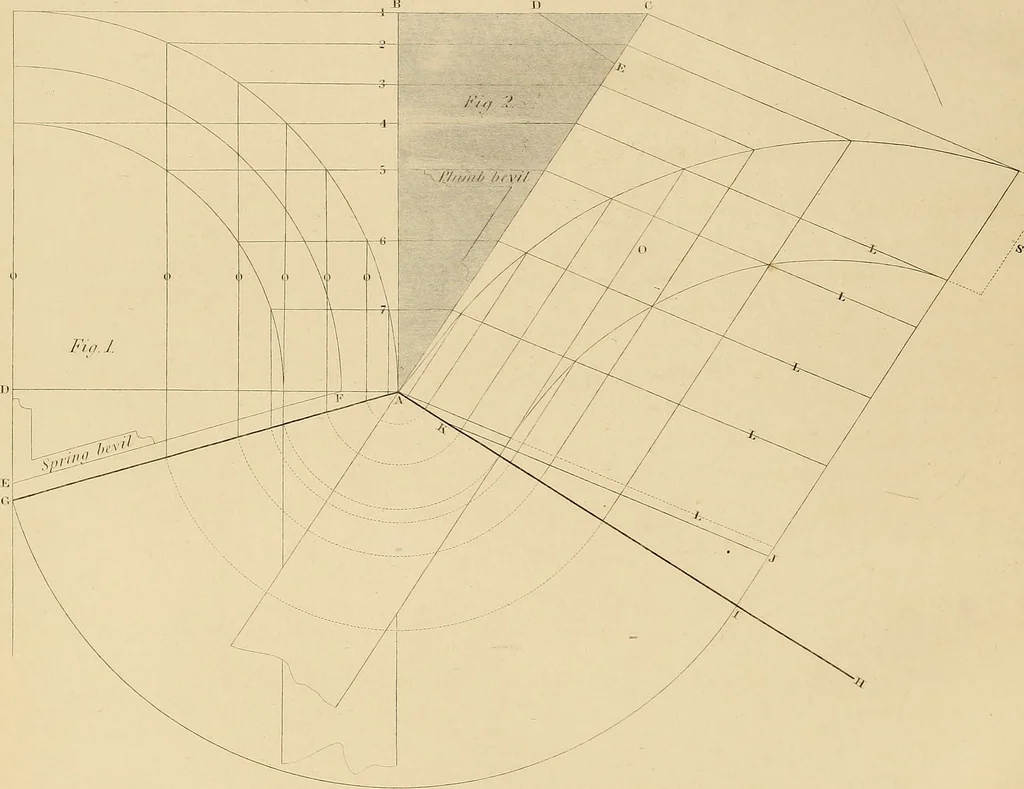

Thu*: 58. … HAND-RAILING. 83 PLATE 58. To draw the face mould O. Let fig. 1 be the plan of the rail, and fig. 2 the pitchboard ; draw the ordinates 1, 2, 3, 4,&c., at right angles to ^ JB; place the spring O P, Plate 57, from Cto D; draw D E at rightangles to A C. Make D E, fig. 2, equal to E D, fig. 1;…
Carpentry
