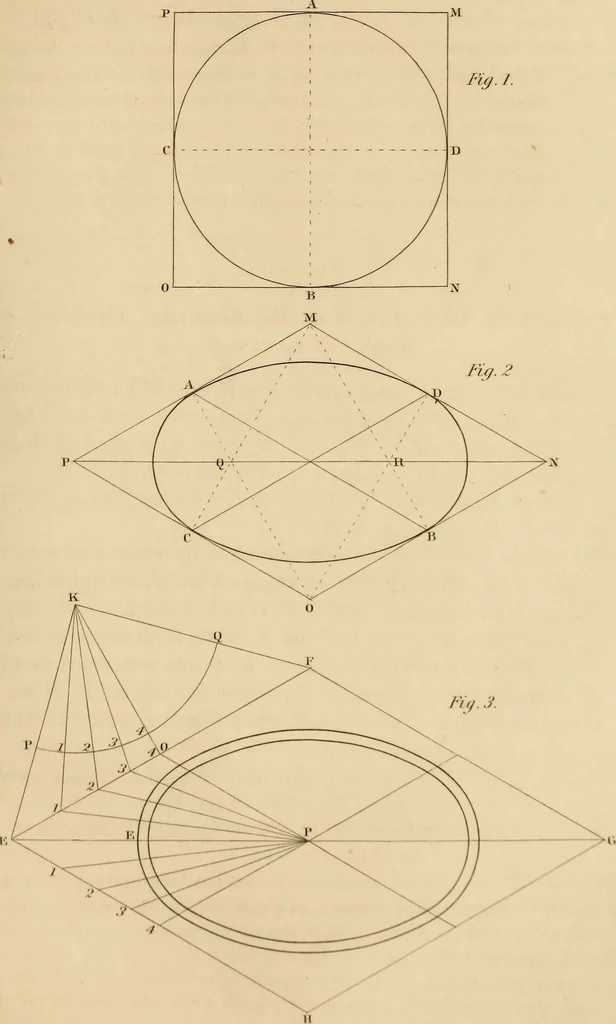

rm isometrical projection has been avoided, as the pro-jection of a figure would require a smaller scale to be used than the scale towhich the geometrical plans and elevations are drawn, but as the isometri-cal figure drawn with the same scale to which the plans are drawn, is inevery respect… … IV Mnii.fif. PLATE XLI. 81 Note 3.—In Note 2 to fig. 3, Plate 40, allusion has been made to inclinedlines requiring a different scale from any of the lines used in drawing theisometric cube: for the mode of drawing those scales as well as for the furtherprosecution of this branch of drawing, the…
