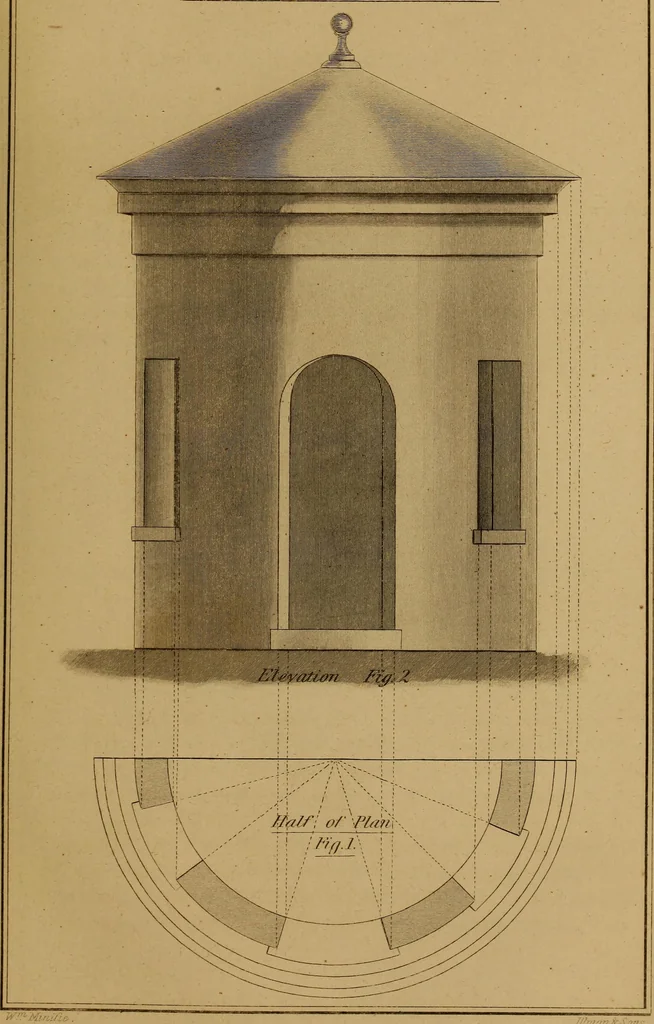

Phtte 31 CIRCULAR FLAN AND ELEVATION … 67 PLATE XXX. OCTAGONAL PLAN AND ELEVATION Fig. 1.—Half the Plan. Fig. 2.—Elevation. This plate requires but little explanation, as the dotted lines from the different points of the plan, perfectly elucidate the mode of drawing the elevation.The dotted line A, shews the direction of the rays of…
