A text-book of geometrical drawing, for the use of mechanics and schools, in which the definitions and rules of geometry are familiarly explained .. (1850)

Minifie, William, 1805-1880. [from old catalog] · Baltimore, W. Minifie & co. · leaf 190

An illustration from A text-book of geometrical drawing, for the use of mechanics and schools, in which the definitions and rules of geometry are familiarly explained .., 1850, leaf 190

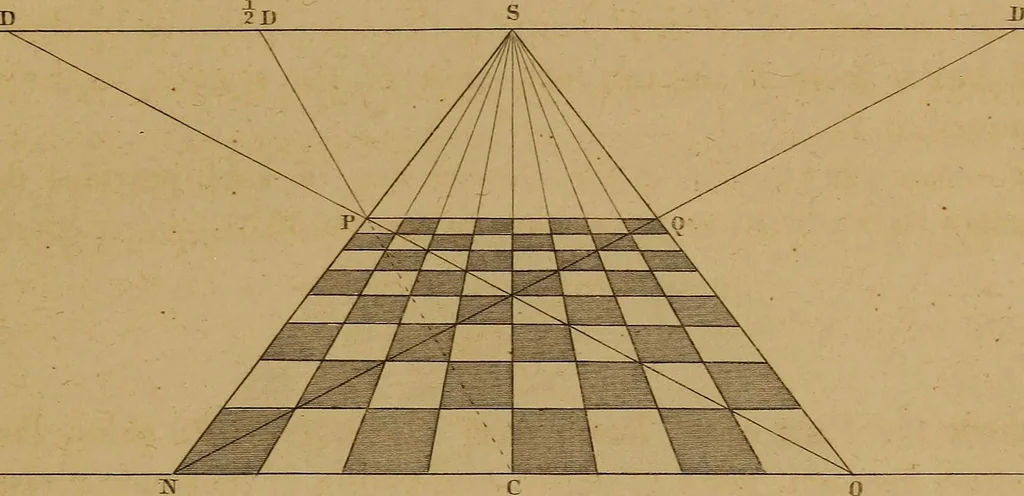

Any rectangular object may be put in perspective by this method,without the necessity of drawing a geometrical plan, as the dimensions mayall be laid off on the ground line by any scale of equal parts. Figure 3. To shorten the depth of a perspective drawing, thereby producingthe same effect as if… … Ft^.Z. Fi^. 3.

Mechanical drawing · Geometry, Descriptive · Perspective
