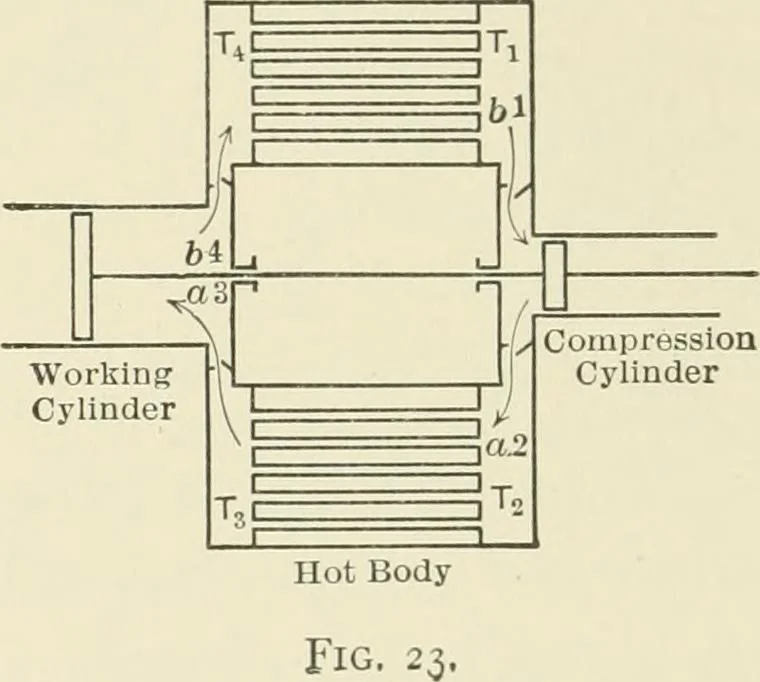

the corresponding positions of the gas in the enginewould be as follows. Intake into the compressor occursalong b I (Figs. 22 and 23), the temperature being Ti; deliveryfrom the compressor occurs along 2 a, temperature T2where T2>Ti owing to the adiabatic compression. Thegas is now heated during… … at this temperature it is delivered along 4 6 to the coldbody there to be further cooled to a temperature Ti{Ta>Ti), preparatory to reentering the compressor witha volume Vi = b i. The temperature of the cold body under ideal conditionsmust be Ti so that the gas coming in contact with it ata…
