A text book of physics, for the use of students of science and engineering (1918)
Duncan, John, d. 1941, Starling, Sydney George, 1873- · London Macmillan · leaf 420

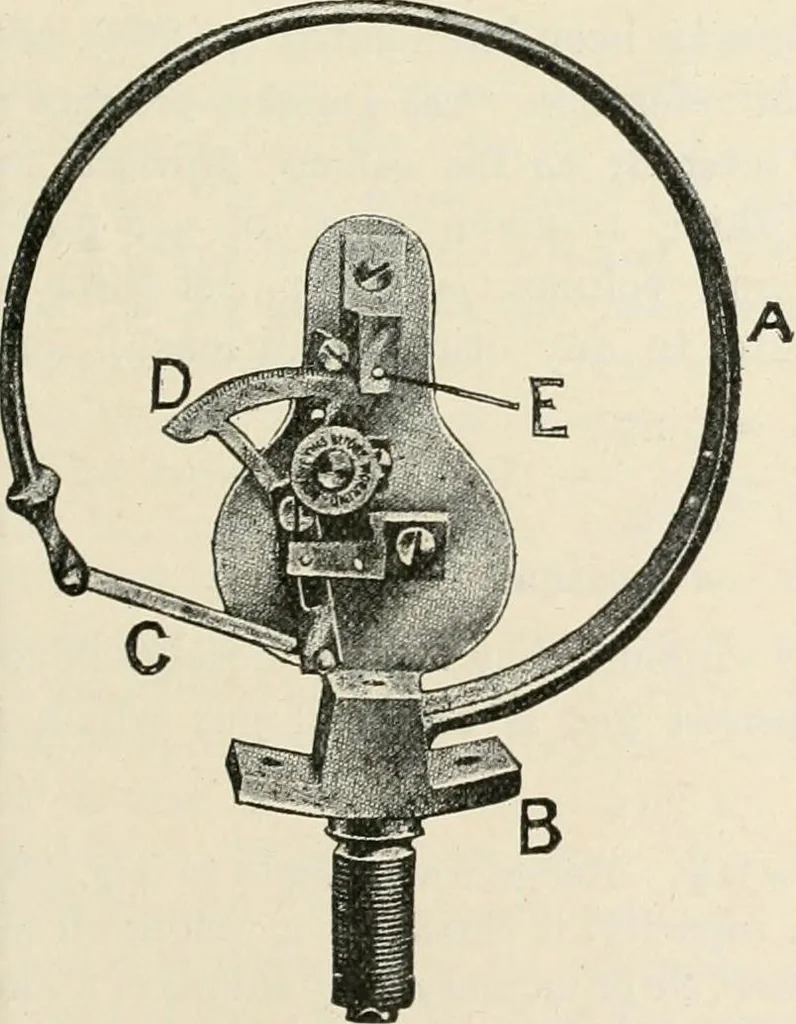

Expt. 89.—Bourdon action.Attach a piece of rubber tubeabout a yard long to a watertap ; close the outer end by aclip, or a piece of glass rod;bend the tube into a curve lyingon the table. Quickly open the water tap, when it will be found thatthe rubber tube, which has been slightly flattened by the… … Fig. 393.—Interior parts of a steam pressuregauge. 396 HEAT chap. secured to a bracket B, which has passages in it forming the steaminlet to the tube. The free end of the tube is closed, and is connectedby means of a short link C to a small-toothed sector D. The sectorgears with a pinion on the…
