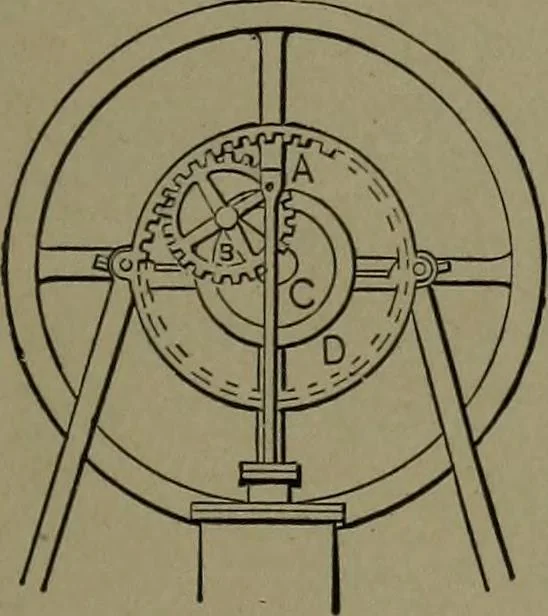

284. PARALLEL MOTION for a ver-tical engine. A, A, radius bars pivoted toengine frame opposite to the middle ofstroke. … 285. PARALLEL MOTION for an engine.The radius bars are of equal lengths from thecentre line of the engine and sliding pivot of thelong bar. Both fixed and sliding pivots at rightangles with the centre line when at half stroke. 286. PARALLEL MOTION of a pistonrod by direct connection with a spur…
