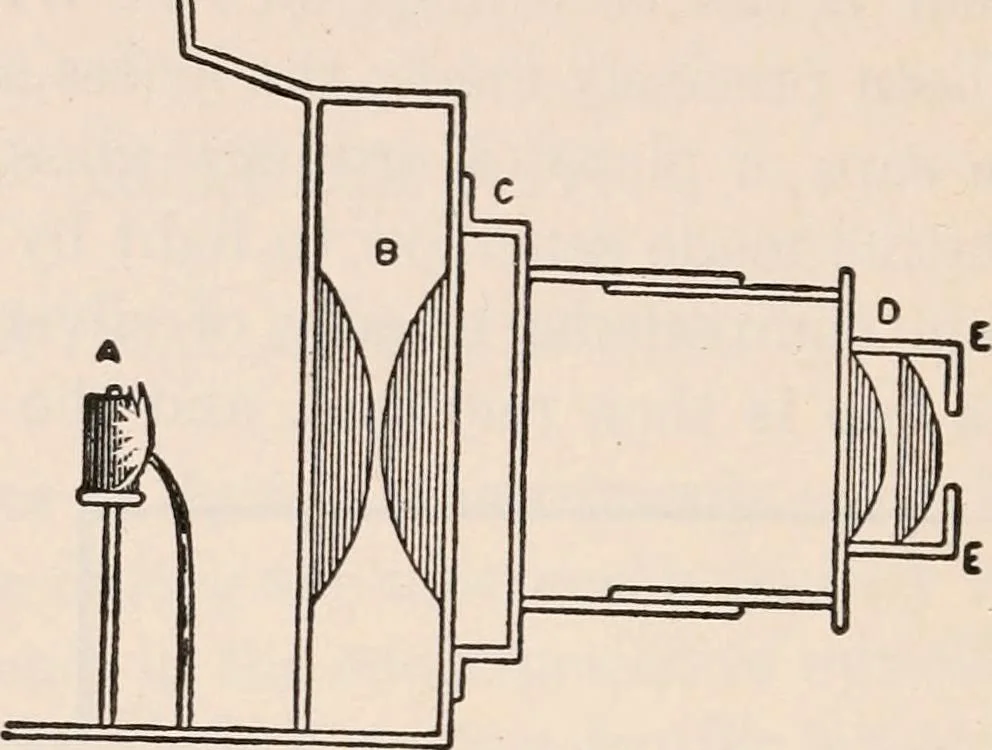

n.—This instrument, known alsoby various other names—stereopticon, for instance—requiresa powerful source of light, such as a large kerosene-flame,or some form of calcium-light A (Fig. 145), in which acylinder of quicklime is heated by a flame farmed by burn-ing together oxygen and coal-gas, or,… … FIG. 145. image of which is to be exhibited. This slide is pushedinto the opening C, a little outside the focus of a smallerconvex lens or a pair of such lenses, D, and a greatlyenlarged real image of the slide is thrown upon the screen. The throwing of large images upon a screen is…
