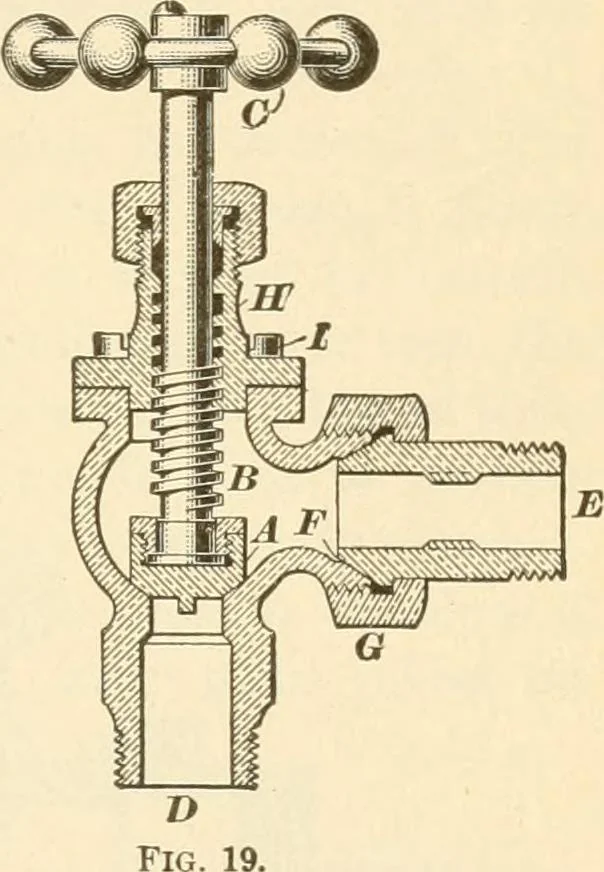

-VALVE. 55. The stop-valve included inthe engine equipment supplied by theSafety Car-Heating Company is illus-trated in Fig. 19, which shows thevalve in section; it is not essentiallydifferent from the one shown in Fig. 7,except that in the present case thebonnet H is secured to the body ofthe… … PRESSURE REGULATOR. 56. Description.—In connection with trains heated onthe above system, the locomotive is supplied with a Masonreducing valve for the purpose of reducing and regulating thepressure of steam supplied to the train. A section of this valveis shown in Fig 20. Steam from the boiler…
