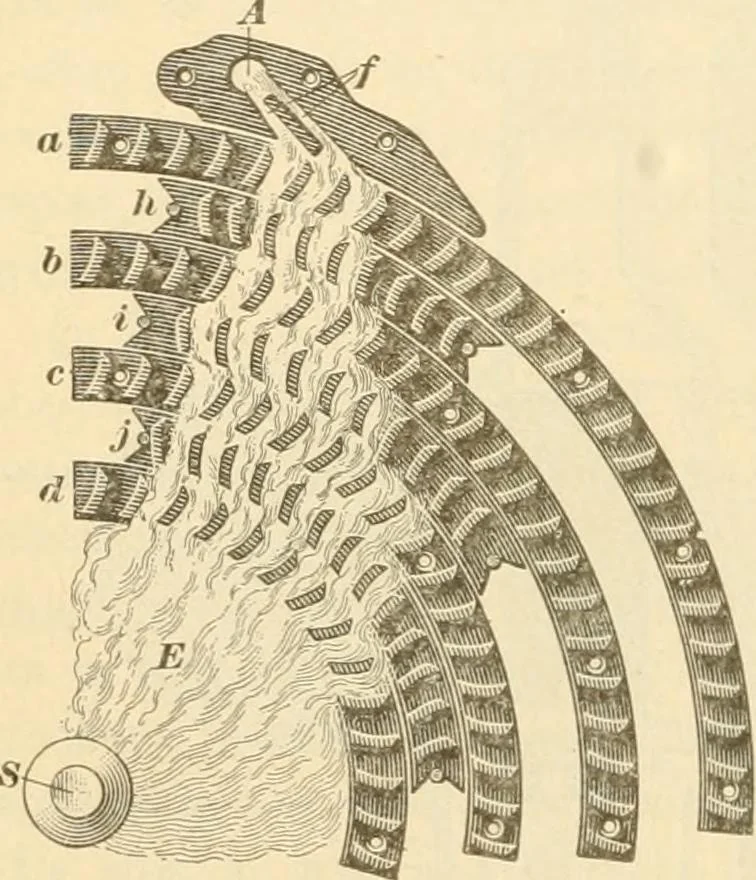

n. This view shows a section of one-quarter of thewheel, cut through from theouter edge to the center,the back half of the turbinebeing removed in order thatthe rows of buckets a, b, c, andd may be observed. The ap-pearance and construction ofthe stationary exhaust pas-sages h, i, and j, which… … port A, 14 THE ELECTRIC HEADLIGHT. governor stand S5 are shown. Diametrically opposite thesteam inlet A and the exhaust passages h, ?, and j, there isanother steam inlet with a corresponding set of stationar}^exhaust passages. The steam thus acts at two diametrically-opposite points on the wheel,…
