A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 264

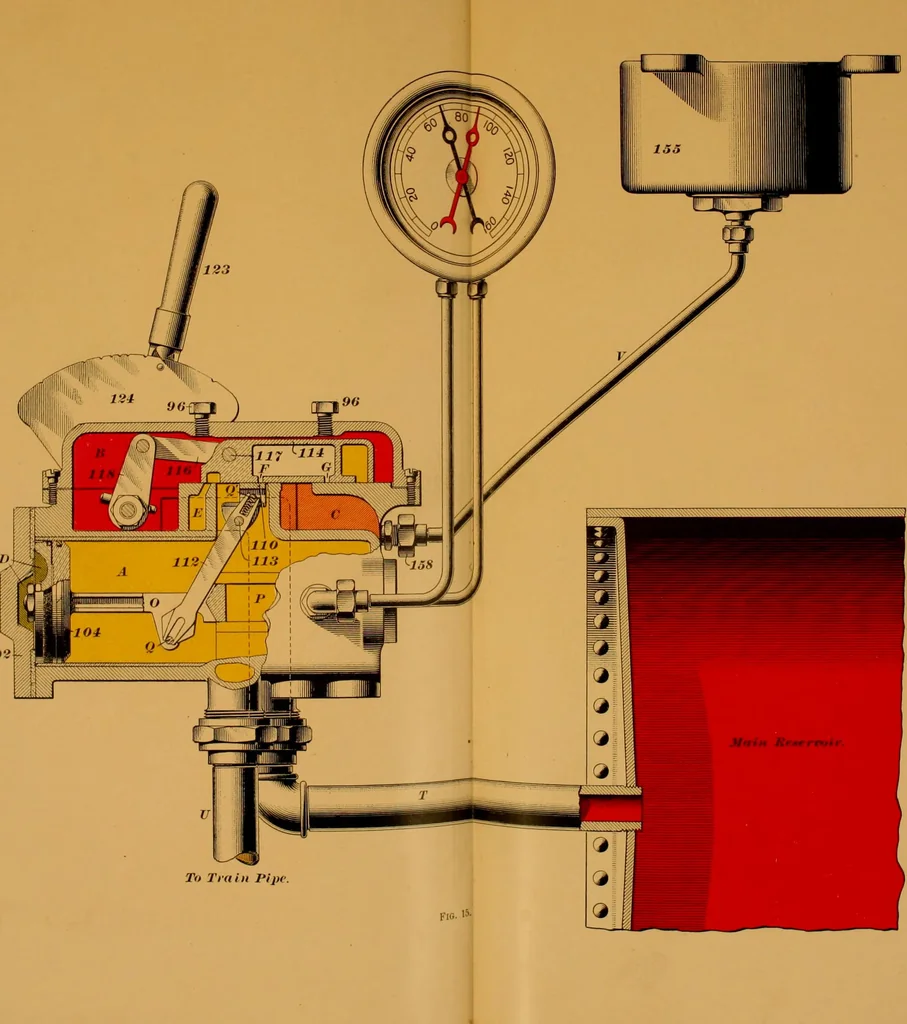

T<> Tiahi Pi pi §15 THE NEW YORK AIR BRAKE. 35 view. The action of this valve is the same as that shown inFig. 13. When the handle 5 is turned down, as in the figure,the valve is cut out; when it stands straight out, that is, hori-zontally, it is cut in and will retain 15 pounds pressure in…
Locomotives · Locomotive boilers · Railroad cars
