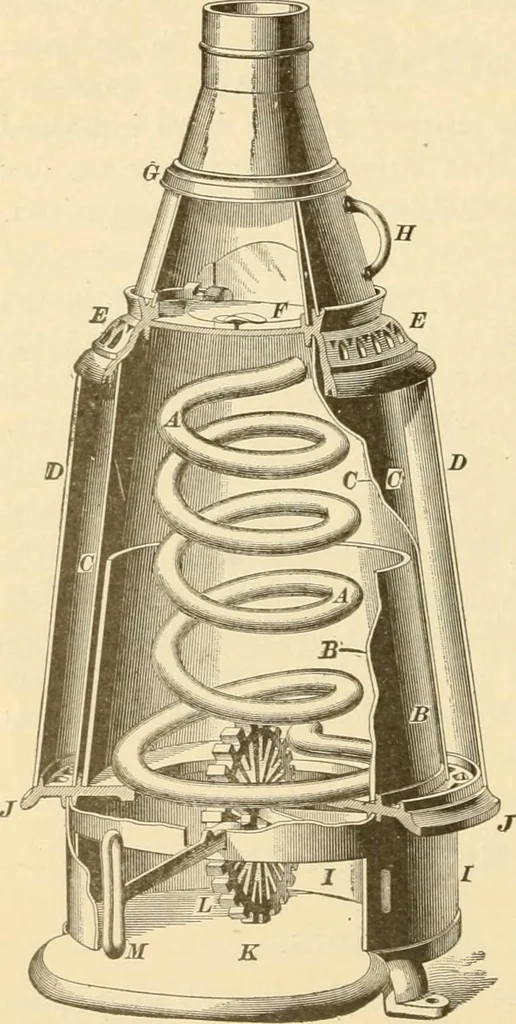

ol air is forcedin through the holes in thecasting / to take its place,thus maintaining an upwardcirculation of the air. Thegenerator coil A is connectedto the heating system and is always filled with the liquidused in the system; the heat from the fire heats the liquid inthe coil A. The liquid… … I §13 CAR HEATING. CIRCULATING DRUM. 4. In addition to the fire enclosure and water coil, whichmake up the heater proper, the Baker comprises certain otherapparatus, namely, a circulating, or expansion, drum, andthe necessary radiating pipes, cocks, etc., through which thehot water is carried to…
