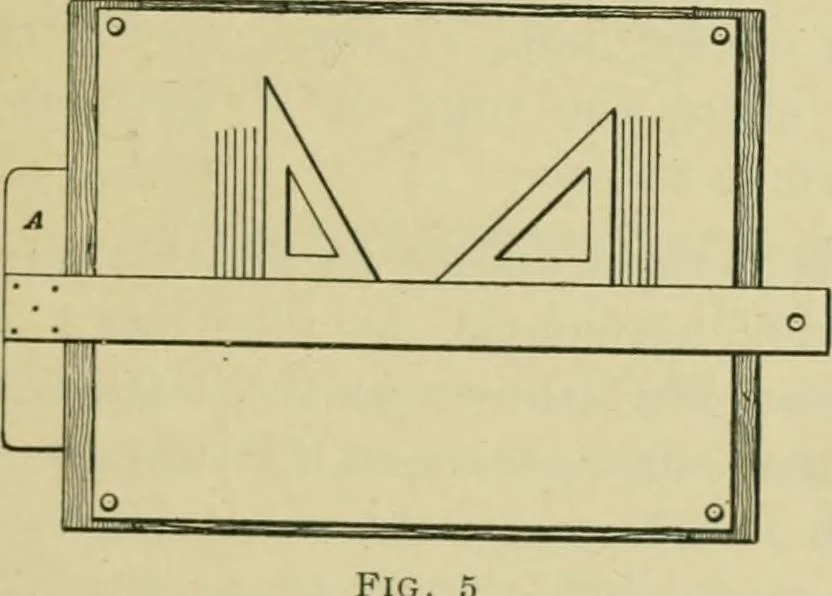

lightly with the left hand,so as to keep them fromslipping, and draw the linewith the pen or pencil held in the right hand, and againstthe edge of the triangle. Fig. 5 shows the triangles andT square in position. 4. For drawing parallel lines that are neither verticalnor horizontal, the simplest… … GEOMETRICAL DRAWING § 13 \rith the left hand; then move the triangle A along theedge of B. The edge a b will be parallel to the line c d\and when the edge a b reaches the point g, through which itis desired to draw the parallel line, hold both triangles t
