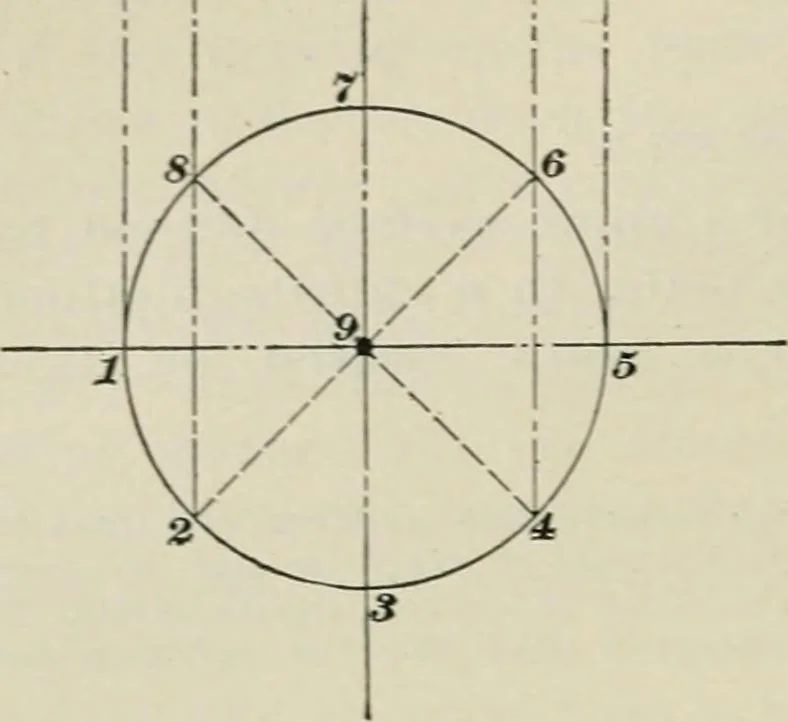

hat problemwhen the plate is finished. In the last space on theplate draw horizontal and vertical base lines in the samecorresponding position as in the space for Problem G. Theline that represents the front elevation of the circular planesurface is then drawn in the same position as in the… … Fig.it shown in Fig. IT. Project these points vertically to theplan and intersect these projectors with horizontal pro-jectors drawn from thecircle in Problem 5. When projecting pointsacross a drawing—as fromthe space occupied by Prob-lem 5 to the drawing forthis problem — it is notnecessarj- to…
