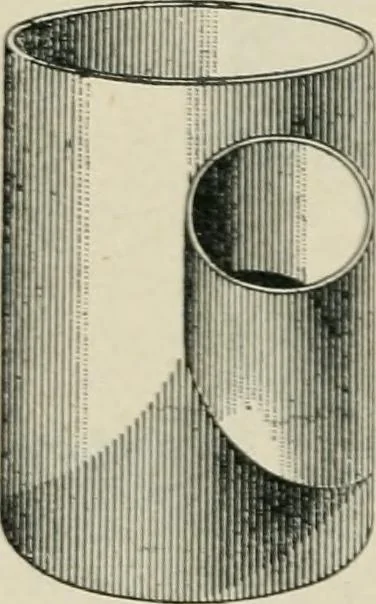

their corresponding locationat a\ b, c, etc. in the elevation (Art. 94). Also observethat certain points on lines drawn on the surface of thesmaller cylinder, as the lines ;;/;/, p q, and rsxn the plan, areprojected to the front elevation, where they are representedas lines at ;/ ;/, q q, and s s.… … § 15 PRACTICAL PROJECTION 96 in the elevation, the curved line of intersection of the twocylinders is to be traced, thus completing the problem.Project the side elevation as heretofore. PROBLEM 35 98. To project views of a cone Intersected by acylinder, the axes of tlie two solids being i^arallel.…
