A textbook on mechanical and electrical engineering (1902)
International Correspondence Schools · Scranton : International Textbook Co. · leaf 416

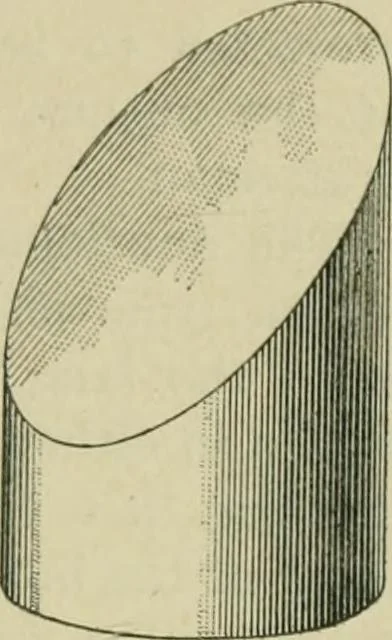

ith the cutting plane.From these points developers are drawnto their corresponding edge lines in thedevelopment. The curve traced throughpoints of intersection in that portion of thedrawing is the upper outline of the devel-opment. This drawing being fully shownon the plate at Fig. 4 (cr) and (/;),… … PROBLEM 5 27. To develop the surfaces of tAvo intersecting.cylindeis. Explanation.—Fig. 21 is a perspective view of intersect-ing cylinders. Since the two cylinders are of the samediameter, their axes intersecting, the lines of intersectionare represented on the drawing by straight lines.…
