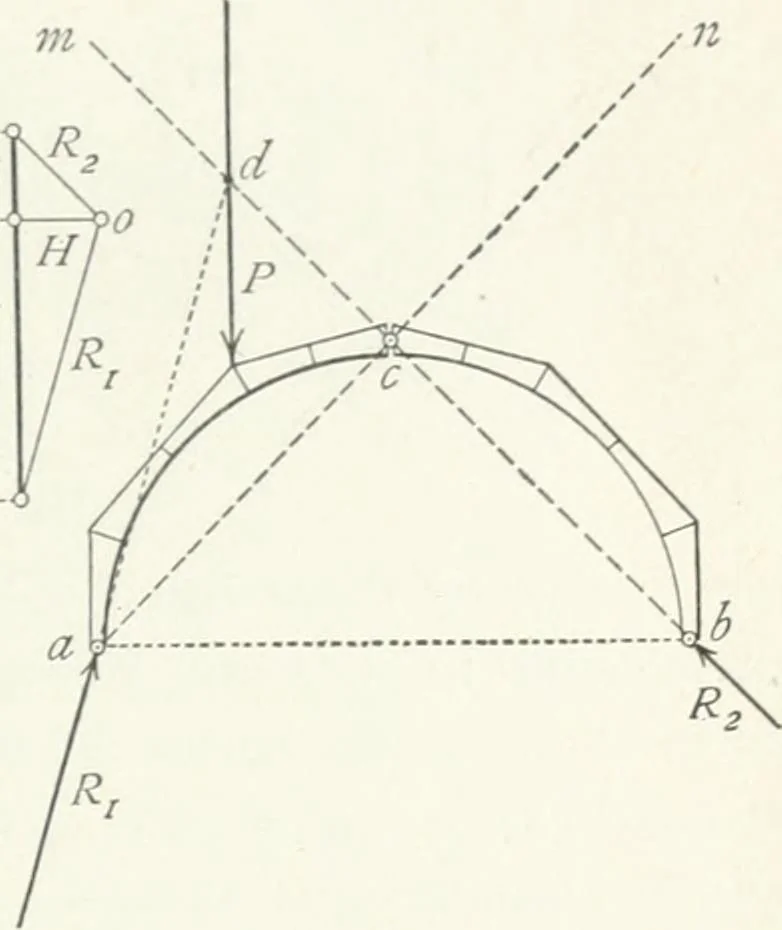

ntaland inclined forces or loads. In order to find the reactions dueto any number of loads the resultant may be obtained for allthe loads on each half of the arch and the respective reactionsdue to the two resultants may then be combined in the usualway. A neater and more expeditious method is… … Fig 85. 162 THREE-HINGED ARCHES. Chap. V. their closing lines, the resultant of the loads on each segmentis divided into two parts, thus giving the loads which are trans-ferred to its supporting hinges by the action of the segmentas a simple truss with inclined parallel reactions. The reac-tions of…
