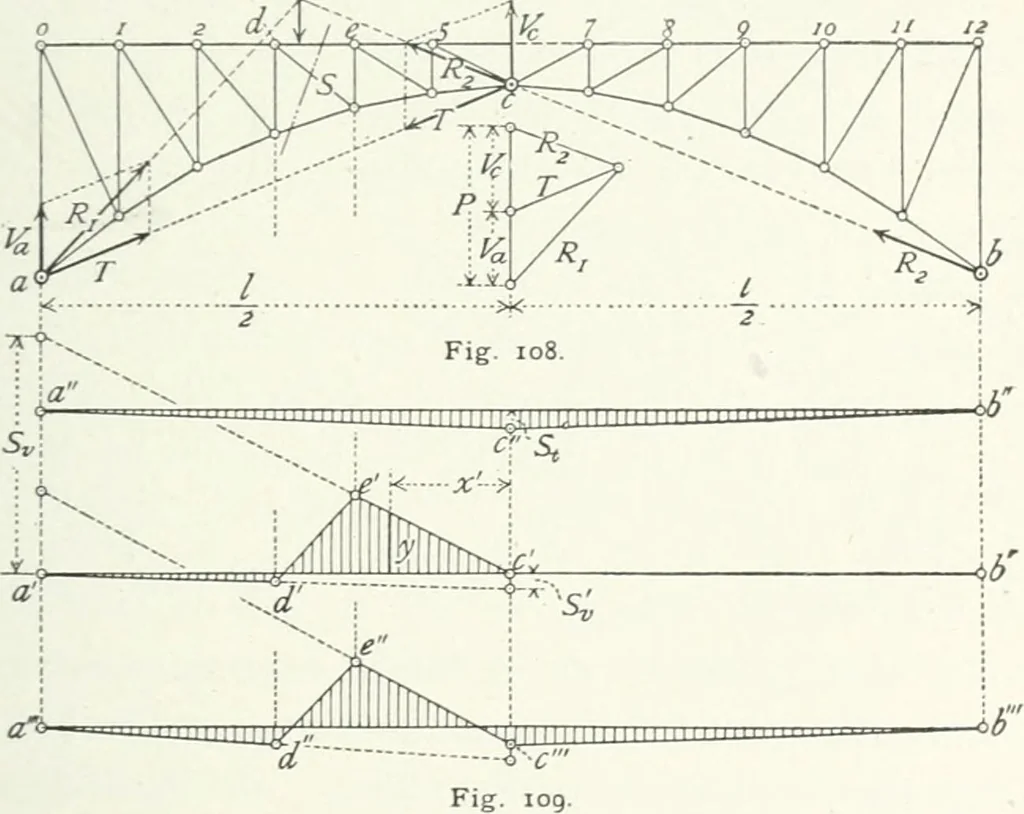

the influence line at an\ ptiint represents the value of thefunction when the load unity is at the position indicated by thepoint, and for any other load occupying the same position,the value of the ordinate is multiplied by the given load. Let it be required to construct the influence line for the… … load on the right of the center hinge, the reaction at c againstthe left half of the arch is equal to R^^. Now let R^ be resolvedinto the components [, and T, the former being vertical andthe latter directed toward the center hinge c. Similarly, R^^ isresolved into the vertical V,. and the…
