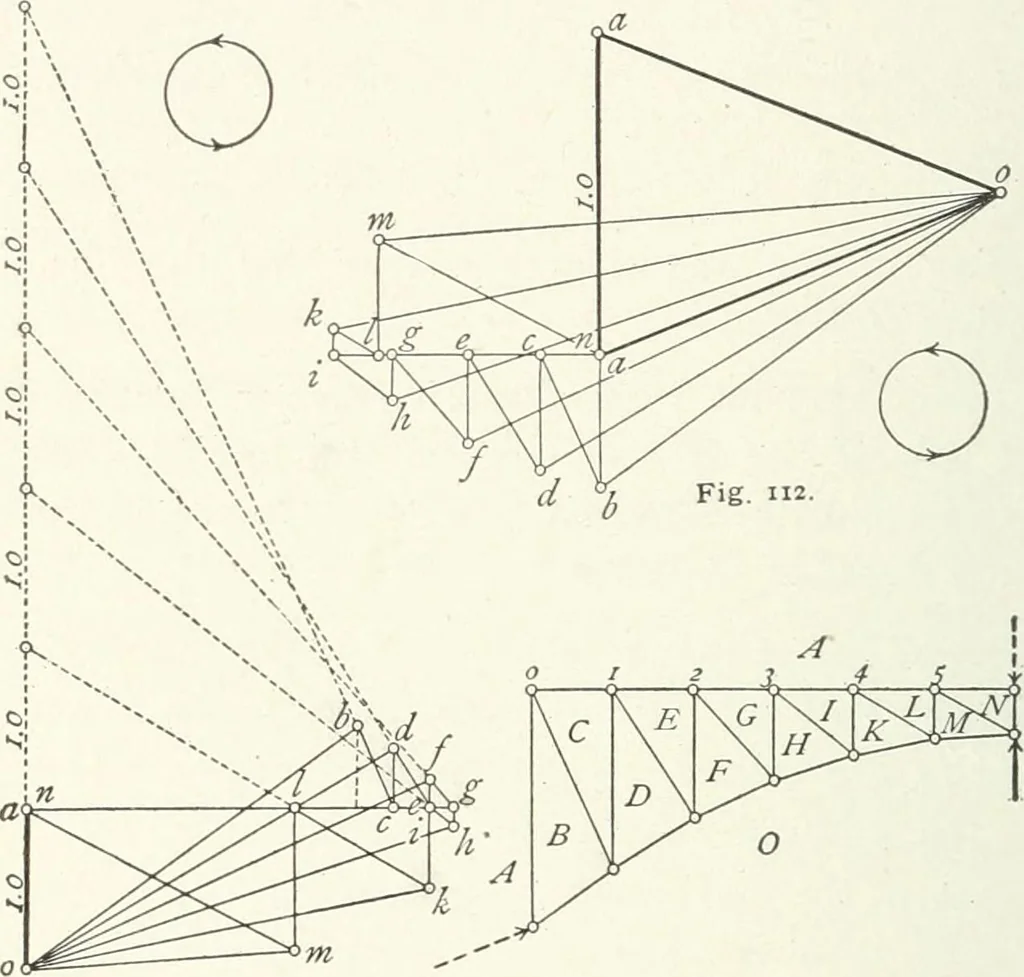

o coincide with a, cand b respectively, thus giving the lowest diagram in Fig. 109as the final form. For example, let the influence lines be drawn for the chordmember U^ and the diagonals D^ and j9- of the arch whose 208 THREE-HINGED ARCHES. Chap. V. dimensions and loading were given in Art. 64.… … Fig. III. Fig. no. center. These diagrams give the following stresses for theabove members : s,. 5,. ^S. u. — 5.00 -2.50 + 0.83 A + 3-02 — 0.19 — 0.22 A + 3-88 -0.98 + 0.16 These stresses are laid off as ordinates as shown in Fig. 113.It will be noted that they are laid off as positive and…
