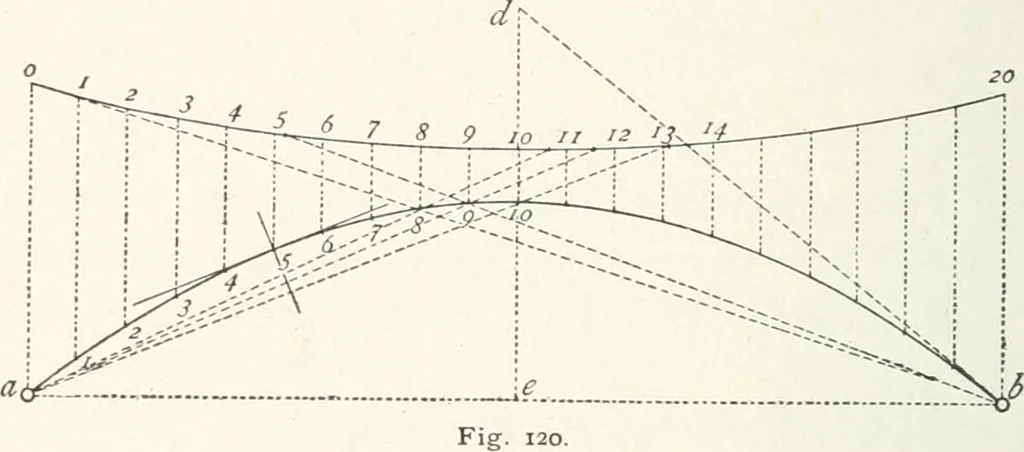

and a rise of 25 feet. The floor system has 10 equal panels andthe dead and live panel loads are 50 and 15 kips respectively.Prepare a table of reactions like the one given in this articleand compute the bending moments for the dead load. 222 TWO-HINGED ARCHES. Chap. VI. Art. 78. Position and… … reaction locus is also given, the ordinates q being computed byformula (3) in Art. JJ. The values of q for the points o to10 inclusive are 41.60, 39.71, 38.17, 36.90, 35.86, 35.03, 34.38,33-89» 33-55> 33-35i and 33.28 feet. The curve is symmetricalw^ith respect to a vertical at the center and…
