Textile design and colour; elementary weaves and figured fabrics (1921)
Watson, William, F.T.I · London, New York [etc.] Longmans, Green and co. · leaf 100

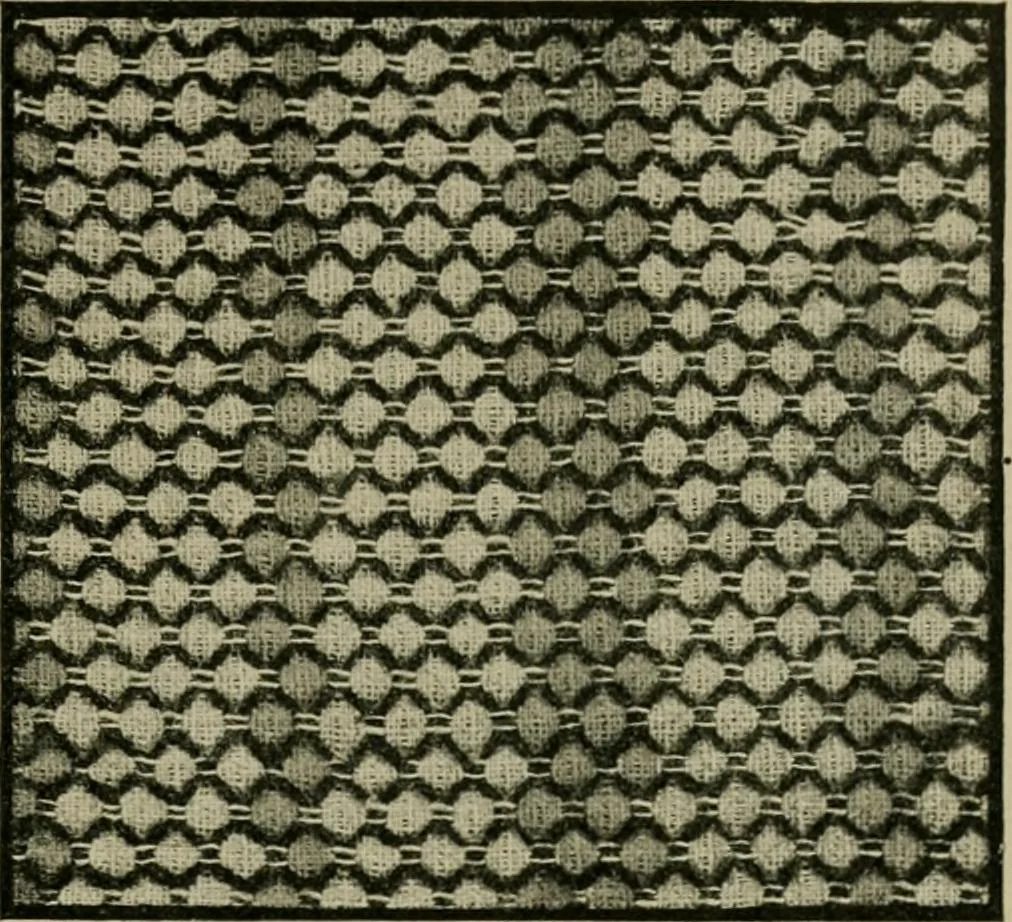

J K Fig. 89. properly developed, each group of threads is placed in more than one split, but careis taken to split the groups of threads by the reed in regular order. Imitationsof open leno effects are obtained in plain weave simply by missing splits in thereed ; as for instance, a stripe effect… … Distorted Thread Effects.—The imitation gauze weaves of this class may bearranged to distort certain threads in either the weft or the warp, or in both weftand warp. J in Fig. 89 illustrates one of the simplest methods of producing adistorted warp effect. The groundstructure is plain weave, and…
Textile design
