Textile design and colour; elementary weaves and figured fabrics (1921)
Watson, William, F.T.I · London, New York [etc.] Longmans, Green and co. · leaf 361

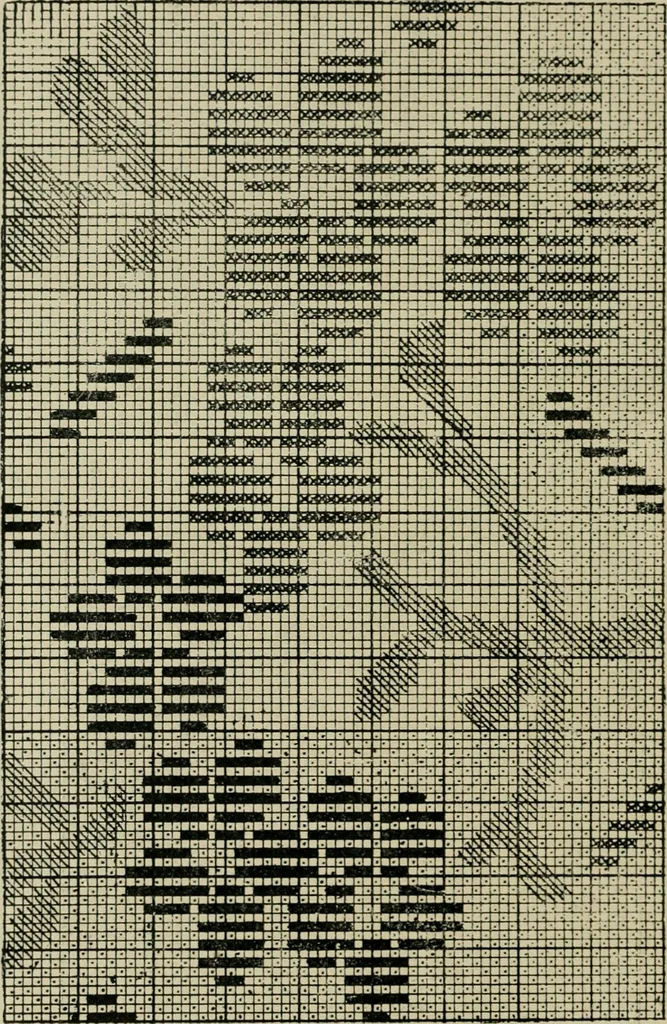

f 345 TEXTILE DESIGN AND COLOUR the point-paper design is very much simpUfied. Thus, the design to correspondwith A in Fig. 406 will be constructed, as shown at C, in which the lifts of thefiguring threads on the odd picks only are indicated, the ground ends being raised bythe heald. In cutting the… … (« S The combination of weft figure with a warp-rib figure is illustrated l)y thefabric represented in Fig. 407. The inclusion of the weft figure makes it necessaryfor all the ends to be operated by the harness, and the design is constructed in themethod shown at A in Fig. 406, except that the weft…
Textile design
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
