Textile design; a working manual of approved practice in all details of the art of designing the various kinds of textile fabrics, together with practical applications of the principles of textile coloring and systematic methods of cost finding (1909)
American School of Correspondence, Umpleby, Fenwick. [from old catalog] · Chicago, American school of correspondence · leaf 24

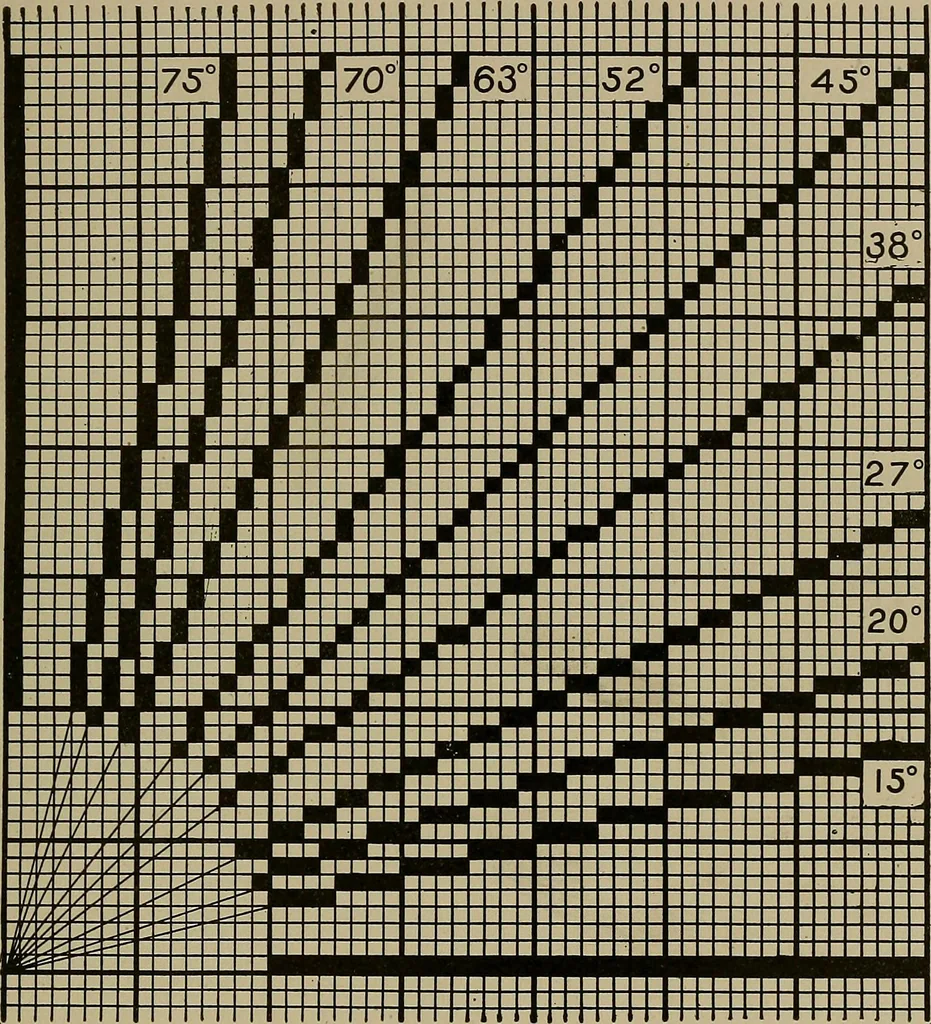

Fig. 26. 2ii TEXTILE DESIGN. 15 through, and, accordmg to the number of threads, open out thespace between the lines of twill. Make light and heavy lines andvary them until there is no further room for variation, observingthe repetitions of the pattern in the reverse order, both in the … Fig. 27. quantity of material which comes to the surface, and in theposition of the twill. Diagrams for illustrating the construction of reclining andsteep twills are shown in Fig. 27. 88 16 TEXTILE DESIGI^. Steep and Reclining Twills. The 15° reclining twill is formed by moving 4 points, Fig. 28…
