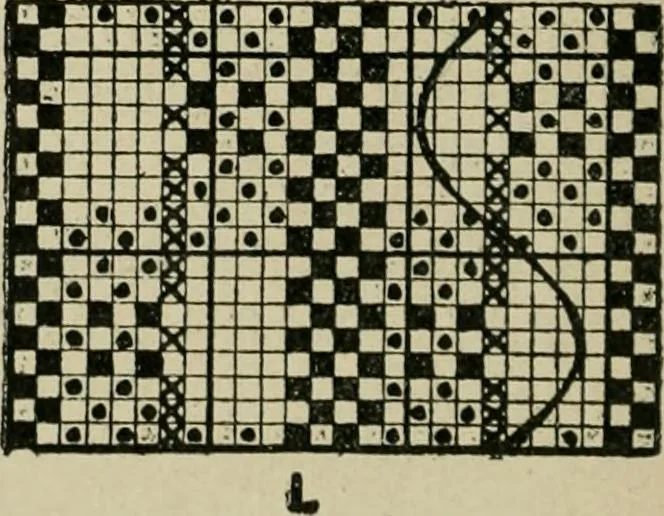

lain weave, while the 4x4 structure indicated at B, is shown as a groundweave to a figure in Fig. 280. When the same threads have to form both an openeffect and ordinary interlacing, as shown in Fig. 280, it is, of course impracticableto leave splits of the reed empty; and in some cases, in order… … J K Fig. 89. properly developed, each group of threads is placed in more than one split, but careis taken to split the groups of threads by the reed in regular order. Imitationsof open leno effects are obtained in plain weave simply by missing splits in thereed ; as for instance, a stripe effect…
