Textile design; a working manual of approved practice in all details of the art of designing the various kinds of textile fabrics, together with practical applications of the principles of textile coloring and systematic methods of cost finding (1909)
American School of Correspondence, Umpleby, Fenwick. [from old catalog] · Chicago, American school of correspondence · leaf 71

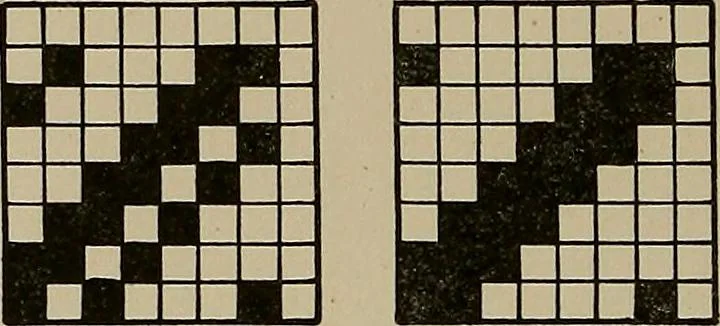

l, filling flush ; drawthis straight over on 4 harnesses and raise the harnesses as shownin Fig. 101. By studying this wave weave, we find that it is thecommon 45-degree twill for 4 picks and that it then twills to theleft, thus : 1, 2, 3, 4, 3, 2, which makes a zigzag or wave effect in the… … Fig. 95. Fig. 96. Fig. 97. Fig. 98. the effect or result in the fabric is a zigzag across the piece or inthe direction of the filling. Reverse Twills. In all the regular twills, as shown in Figs.87 to 90, the filling predominates on the face of the cloth, andthe warp on the back of the cloth. Take…
