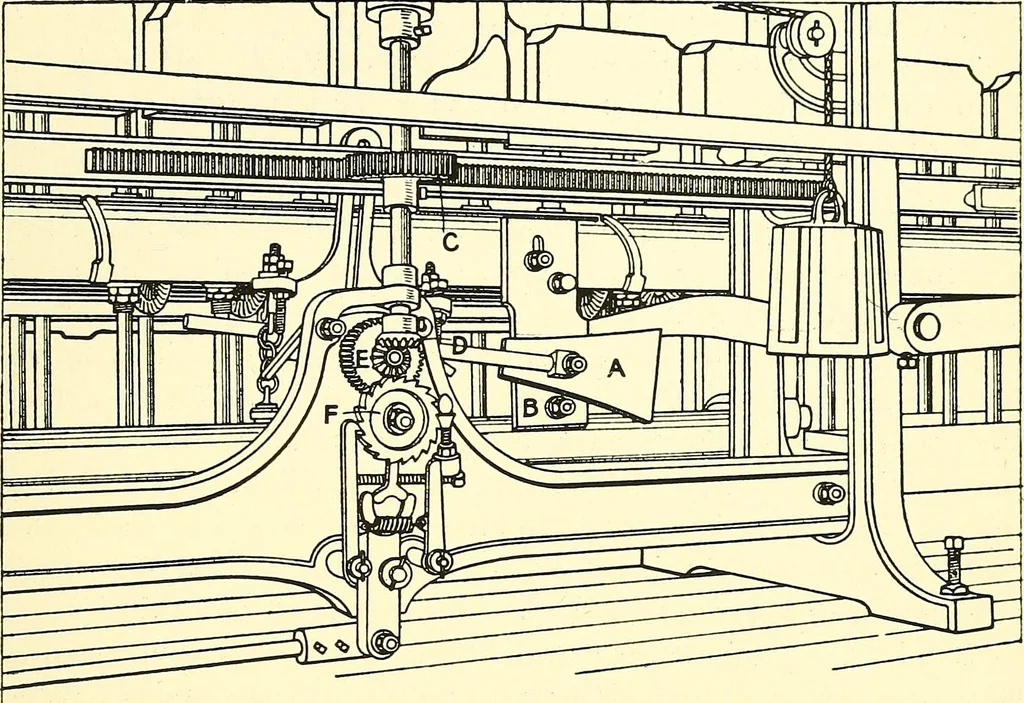

ptation of the double-disc lifter only to be seen now on the flax-spinning frames. Itconsists of a peculiarly shaped disc cam, grooved spirally to carryround a bowl with a shaft acting on the levers of the lifter rail.Presenting an undulating surface, the cam causes the disc on itssurface to move… … Fig. 169.—Lifter Motion (J. Hetherington & Sons) A, Shaper plate, b. Stud bracket, c, Rack pinion. D, Bevel on upright shaft. E, Tapering bevel gearingwith bevel on upright shaft. F, Ratchet change pinion circles small; the motions of the lifter plate or rail are thereforeshort. Gradually,…
