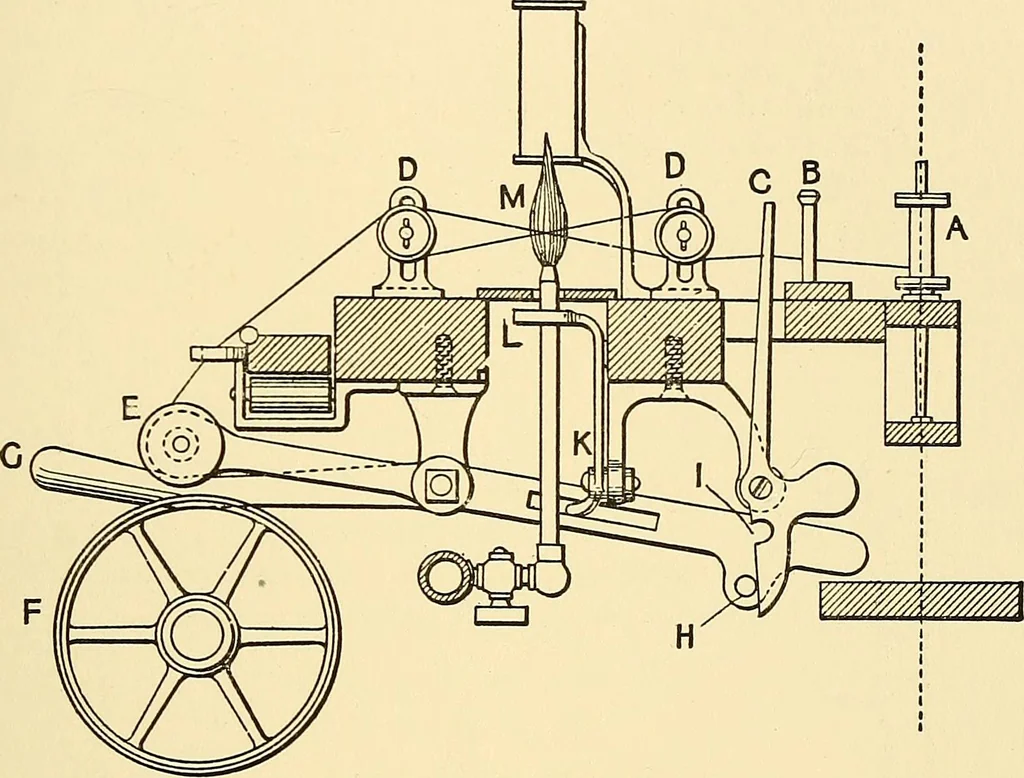

end of which was held bya short bracket in the side of the frame, a stud on the end of the guidebar was set; projecting from the lever was a small wheel or bowl,resting against the side of a heart-shaped cam. The end of the drumshaft opposite the pulleys was a small worm screw, and this workedinto… … Fig. 197.—Gassing Machine : Section A, Bobbin. B, Glass guide rod. c, Slotted lever through which the thread passes. DD, Adjustablerollers. E, Winding-on bobbin actuated by friction with the driving pulley F. G, Starting lever, which whendepressed throws the pin H into the nick i of the lever c,…
