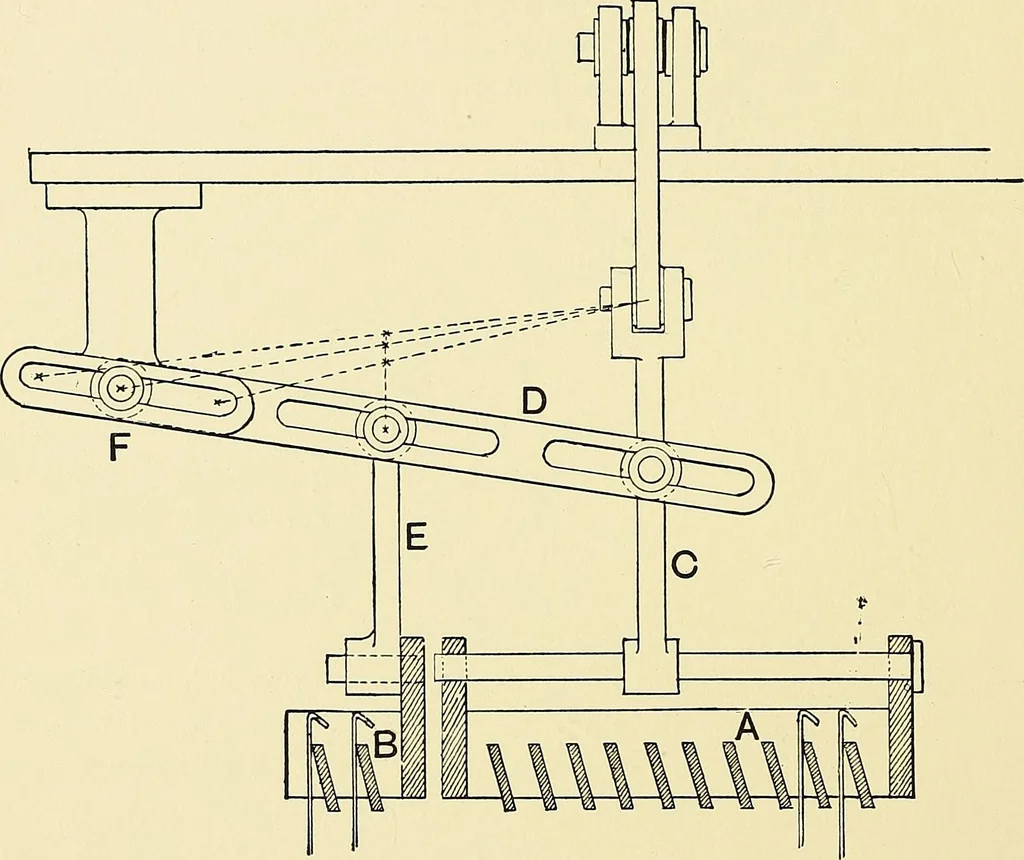

rating the easing applianceof the warp (fig. 294). The needles working the latter are also attached 78 WEAVING to the doup heald and the standard. The neck cords of the easinghooks do not pass directly to the warp, but are attached to shortand adjustable levers, fulcrumed at the farther ends upon a… … Fig. 294.—Lifting Motion of Gauze Jacquard A, Figure griffe. B, Slackening grifFe. c, Rod lifting the figure griffe. D, Slotted lever lifting the slackeninggriffe by means of the connecting rod E. F, The fulcrum on which the slotted lever rocks. harness. Heavy lingoes are required for the ends of…
