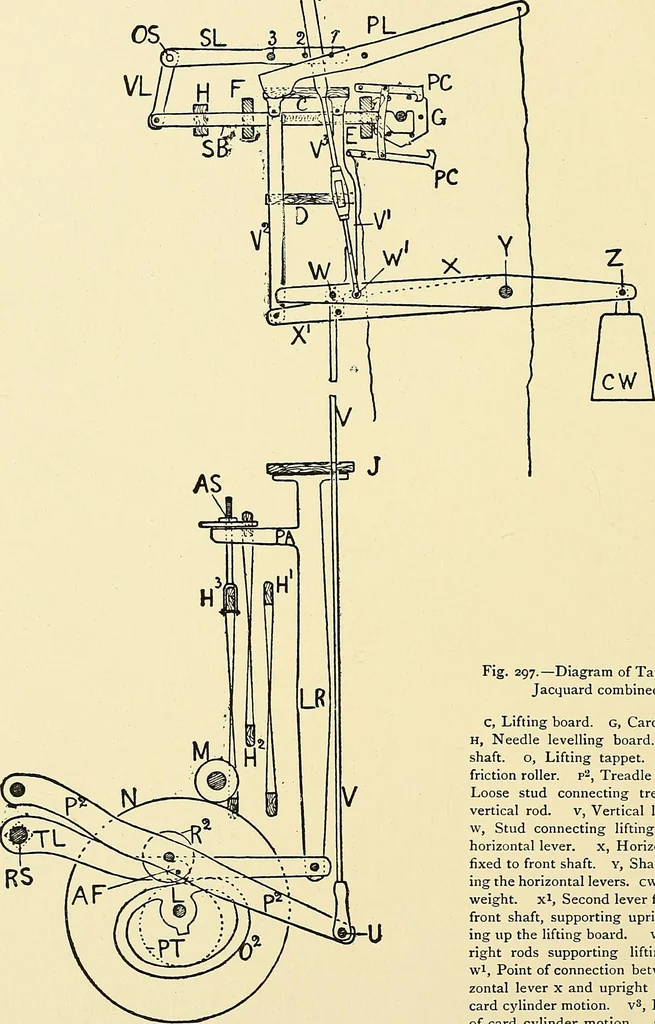

Striking-up or levelling board, i, Guide board, j, Bottom-lifting board, k. Mails, l, Lingoes. mails, into which the pile warp threads are run, according to design. On the ends of the cords lingoes are hung, to keep them steady and hold down the warp. If we were working a figured plush with this… … Fig. 297.—Diagram of Tappet andJacquard combined C, Lifting board. G, Card cylinder.H, Needle levelling board. L, Lowshaft, o, Lifting tappet. r2, Anti-friction roller, p, Treadle lever, u,Loose stud connecting treadle withvertical rod. v, Vertical lifting rod.Vf, Stud connecting lifting rod…
