The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 128

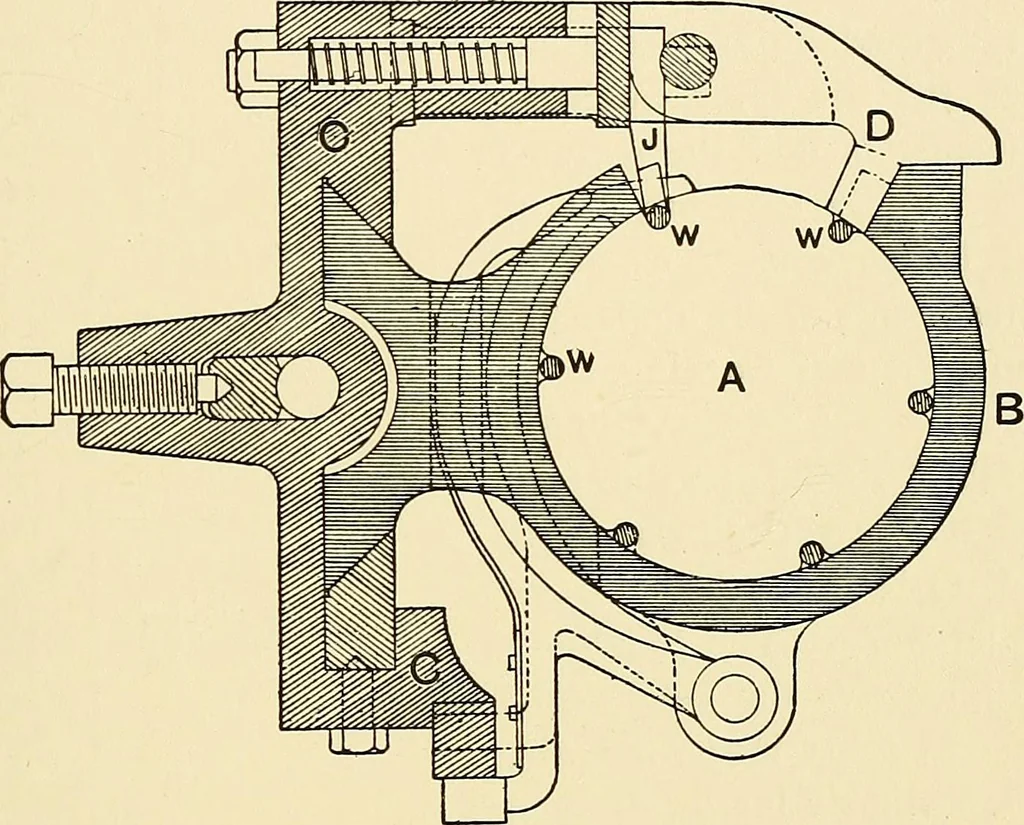

EY lOI to each bar. The ends of the rods are bent flat, so as to form abase for the bars. As the rocking shaft vibrates, the rods rise andfall, causing the needle and pin bars to lift and sink up to andbelow the level of the warp. From the -whip rolls, or, as it may be, bobbins, the whips, orextra… … Fig. 308.—Wire-inserting Motion (section)A, Roller. B, Casing, c, Slide carrying finger d and pawl j. w, Wires. threaded. As we have indicated, the main parts of the whole apparatusare carried upon the swords and swing with the slay. Variations on this lappet mechanism have been introduced, somefor…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
