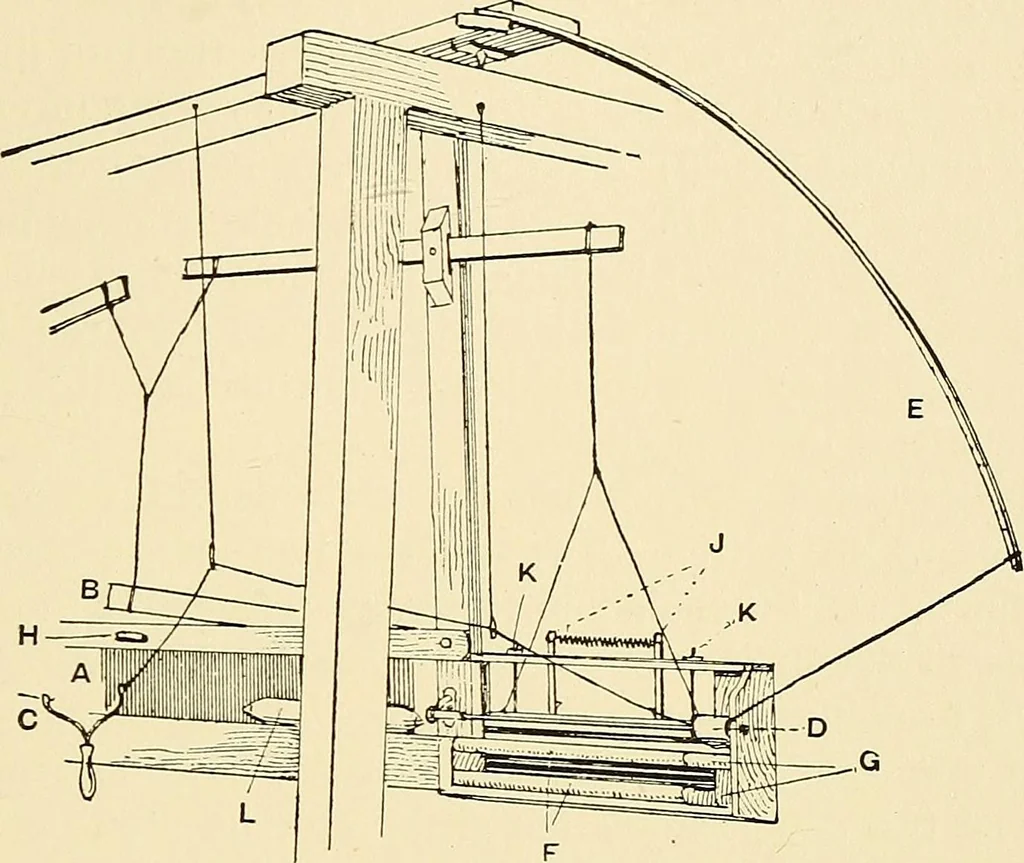

heweaver lifts the boxes. On the hand tree itself a small trigger pro-jects, the inner end of which is connected with the spring rods up-holding the boxes; pressure upon the trigger draws the rods together,letting the boxes drop by withdrawing the steps upon which they aresupported. Though… … Fg- 325.—Spring Shuttle Box A, Reed. b. Lever lifting the shuttle boxes. c, Picking stick. d. Picker. e, Spring returning the pickerto the end of the box. F, Sliding portion of shuttle box. G, Fixed portion of shuttle box. H, Trigger which drawsapart the rods j, allowing the sliding portion of…
