Manufacture of narrow woven fabrics, ribbons, trimmings, edgings, etc., giving description of the various yarns used. The construction of weaves and novelties in fabric structures, also descriptive matter as to looms, etc (1917)

Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Textile Pub. Co · leaf 193

An illustration from Manufacture of narrow woven fabrics, ribbons, trimmings, edgings, etc., giving description of the various yarns used. The construction of weaves and novelties in fabric structures, also descriptive matter as to looms, etc, 1917, leaf 193

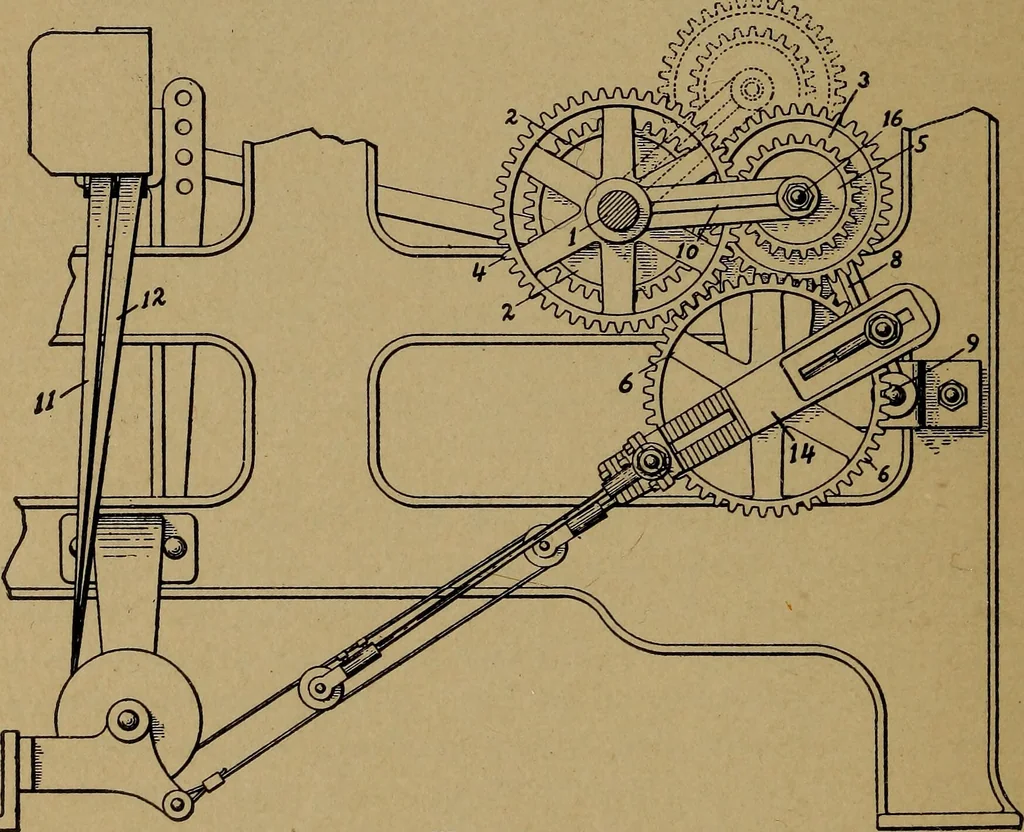

crank shaft 1 rotates gear 2and through said gear the gears 3, 5, 4, and 6 willbe rotated and the double crank mechanism connectedwith the gear 6 will be operated, said racks beingoperated in turn through connections to the shuttleracks (not shown). A system of spur gears is so arranged that… … Fig, 231 will be carried from one extreme position shown mFig. 231 to its opposite extreme position, and throughthe connections and straps to the shuttle racks andshuttles move them to communicate to said racks andshuttles a complete movement in one direction. Atthe end of the latter, the continued…
