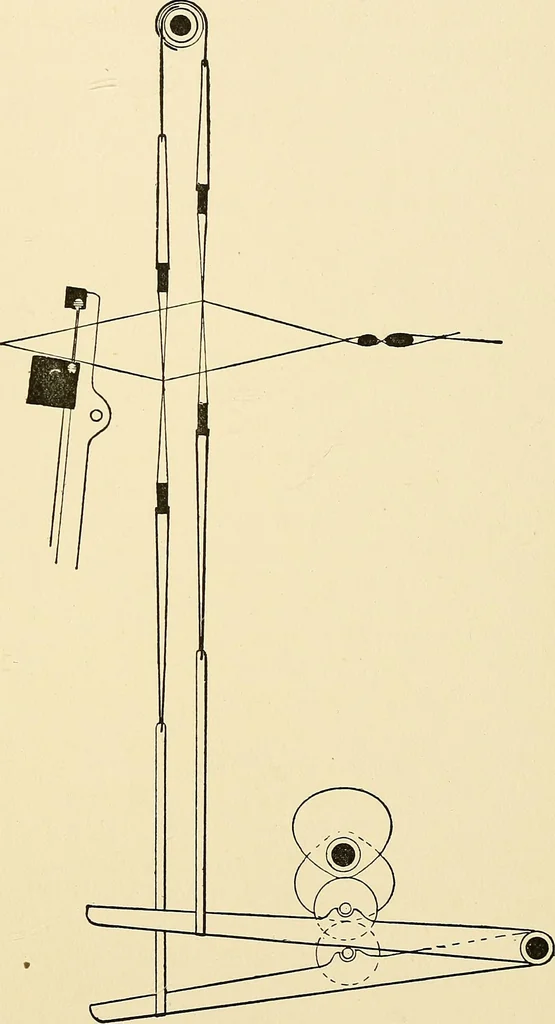

shaftturns round with thecrank shaft in agiven proportion ofrevolutions. Comingmore closely up tothe tappets, we ob-serve that the dis-tance from one sideto the driving shaftis little more thani^ in., while the dis-tance between theshaft and the widestpart of the tappet isabout 4 in. The treadle… … Fig- 255.—Simple Tappet 6 WEAVING the treadle will be up when it lies against that section. In this wehave the up-and-down motion of the treadle secured. The short sideof the tappet, at least, does not depress the treadle, while the longside does. Given that the two eccentric cams we call tappets…
