The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 33

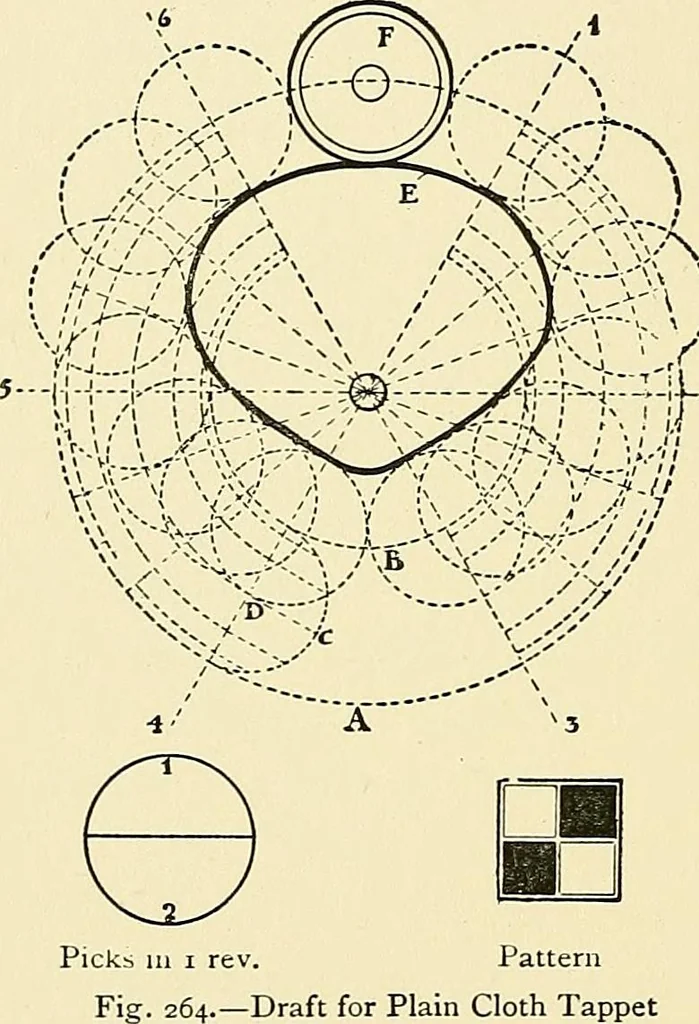

t outline ofthe tappet required. The second method is perhaps the more scientific (fig. 264). Dividethe two circles into equal parts. Subdivide each semicircle into three,and name the radials thus made i, 2, 3, 4, 5, 6. The space betweenI and 3 equals two-thirds of a pick, and the space from 3 to 4… … Pattern-Draft for Plain Cloth Tappet F, Bowl of tappet lever. E, Shape of tappet.B, Circle on radius from tappet centre to bowl centreat shortest distance. a, Circle on radius fromtappet centre to bowl centre at highest point of lift,c, Middle circle. D, Point of intersection. i, 2,3. 4i 5. 6,…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
