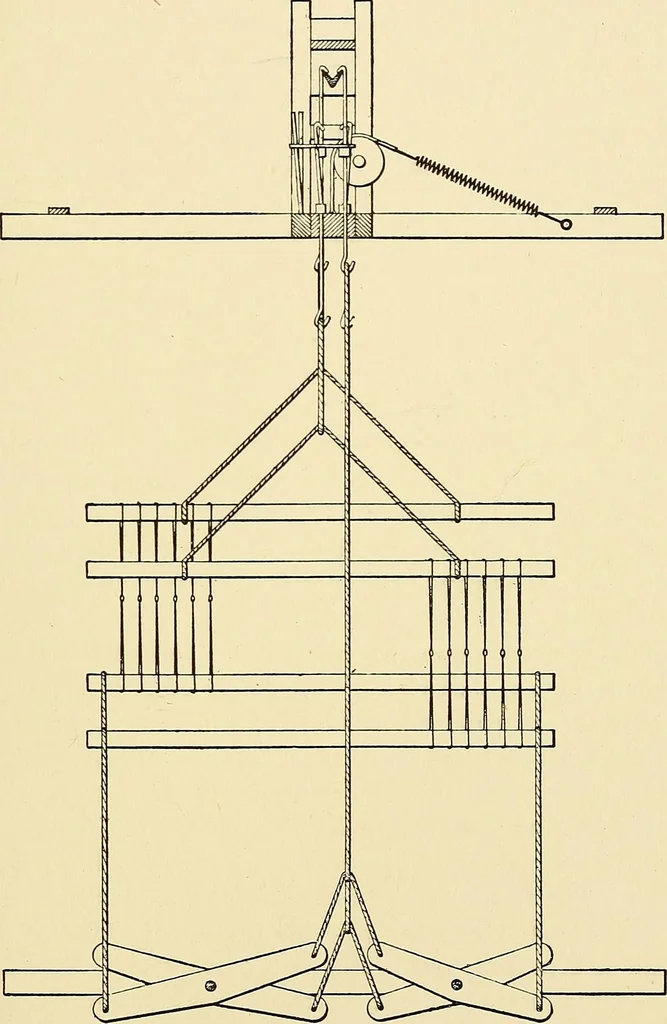

hin theupright spars of the frame what is called the block is fixed to slide ingrooves, the block containing a pair of horizontal iron bars, or knives.A treadle under the loom operates the block and bars by means ofa lever; when the treadle is depressed, the lever lifts the knives. Two THE DOBBY 37… … Fig. 274.—Witch or Dobby Shedding Arrangement for Hand Loom back knife, the front row inclining away from the front knife.Straps depend from the front row of hooks, and cords from the topshaft of the heddles are attached to them. The straps on the secondrow of hooks are fastened to cords or wires,…
