Bradbury, F. (Fred) · Manchester : John Heywood Ltd. · leaf 78

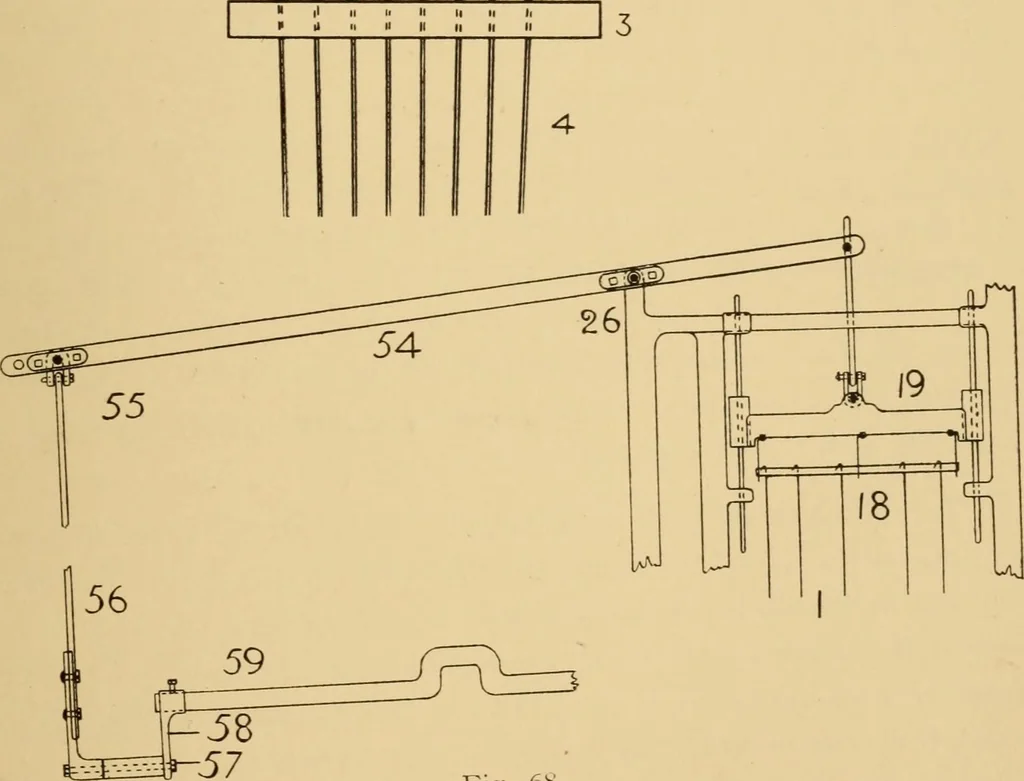

Fig. 67. … Fig. 68. the string 46, the catch lever 44 w ,-ill turn about the stud \$ until it is in contact svi th the underside of the cylinder, and also lift through 74 JACQUARD MECHANISM AND HARNESS MOUNTING. the pin 47, the catch lexer 42 until the hook of the top catch isabove and perfectly clear of the…
Textile machinery
