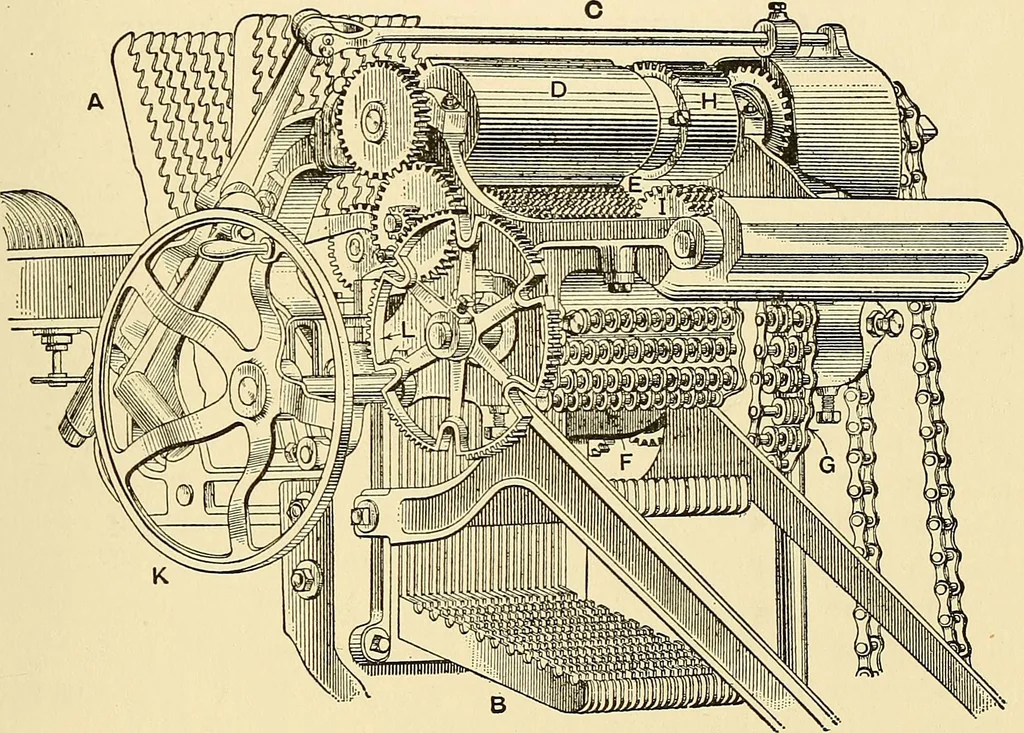

t would necessarily lift, or rather draw up, the weight,and this is exactly the kind of mechanical arrangement adopted inthis machine in raising the healds. For example, a strap, in mount-ing the loom, having been attached to the upper portion of the jacklever, it is then passed over the pulleys,… … Fig. 281.—American Dobby A, Harness jacks, lifting arms. B, Harness jacks, depressing arms, c, Lever of levelling handles. D, Uppersegment cylinder. E, Gear vifheels on vibrating levers. F, Pattern chain. G, Chain actuating shuttle motion.H, Segment wheel of shuttle motion. I, Segmented discs of…
