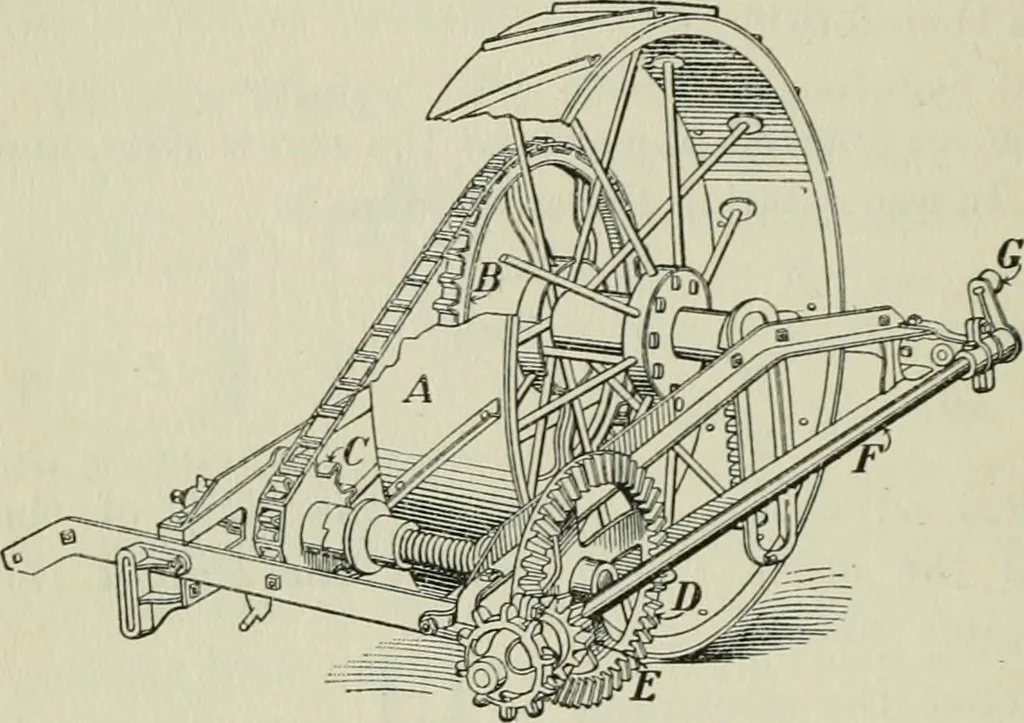

ig 99),and the vice (Fig. 100). 80 MACHINES ILLUSTRATIVE PROBLEMS 1. Why should shears for cutting inetal have short blades and longhandles ? 2. In the driving mechanism of a self-binder, shown in Fig. 101, the driving-wheel Ahas a diameterof 3 feet, thesprocket - wheelsB and C have40 teeth and… … FiS. drawn forward by thehorses. On its axis is the sprocket-wheel B, and this, by means of the chain drives the sprocltet-wheel C. The what puU on the latter drives the cog-wheel D which, again, drives the cog-wheel £, , . . , , and this causes the shaft F with the crank G on its end to rotate.…
