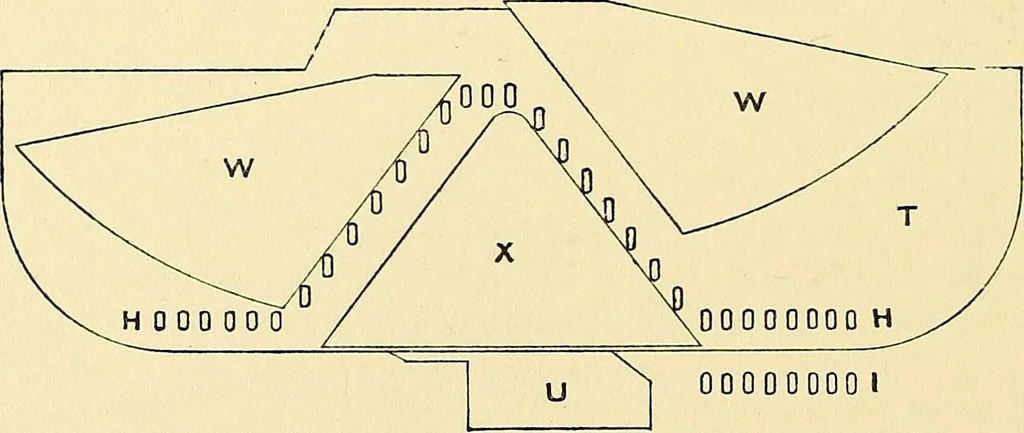

s, and leave crank toright. Place the bobbin of yarn (which must be evenly and firmly wound)on pin of bobbin holder; pass the end of yarn up through the eye of yarnstand, down through the eye near thumb nut B of yarn carrier, then throughthe -^-shaped eye, through the yarn guide, and finally down… … Fig. 516.—Cam Action H H, Needles pushed up, in and out of action, i, Needles out of action, not pushed up. T, Lock plate,u. Lock, w w, Right and left wing cams, x, V or centre cam. will now be out of action, to enable carriage to be moved at will, and toenable selvedge to be cast on. Take the…
