Taggart, William Scott · London : George Routledge & Sons, Ltd. · leaf 107

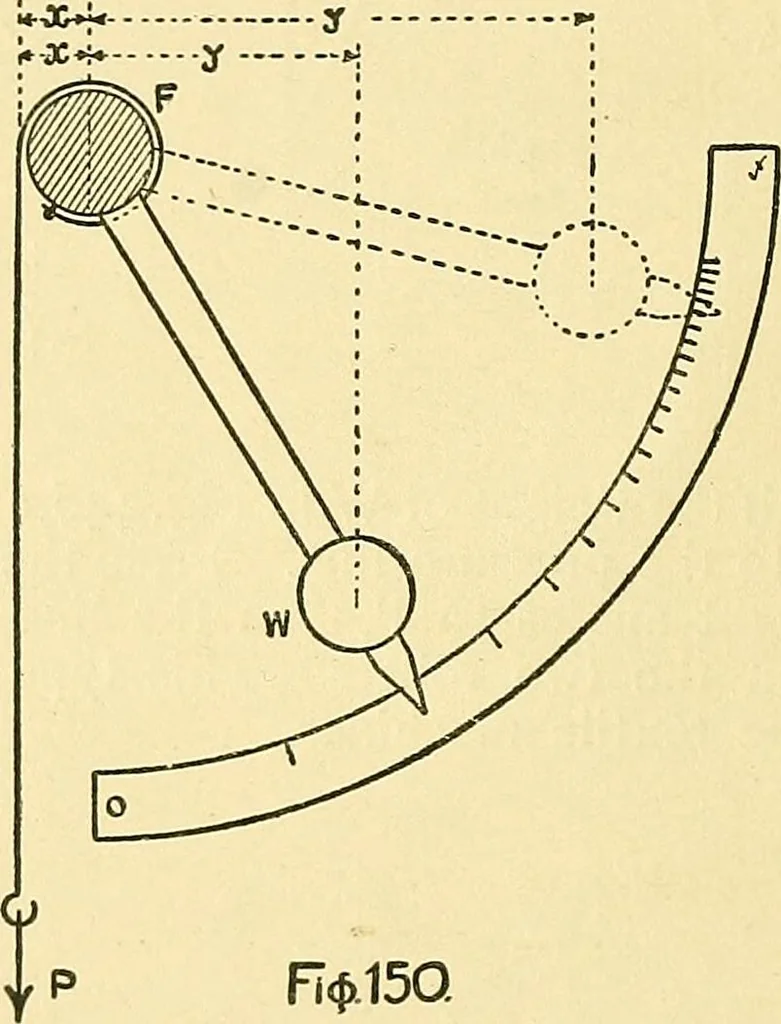

on a circular scale. This scale is usuallya quadrant of a circle, and is divided so that the weight of theyarn can be read off. A diagram of this yarn balance is shown in Fig. 149. Whenthe apparatus is in a state of equilibrium, the long arm pointeris at zero on the scale, this point being some… … Fi(^.15Q the arms ; for when the arms come to rest, it is seen that theweight in P is nearer to the vertical line through F, whilst Wis farther away. As P increases its moment decreases, whilstthe moment of W increases. W itself is a constant quantity.The result of these changes in the moments of…
Textile machinery
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
