Taggart, William Scott · London : George Routledge & Sons, Ltd. · leaf 22

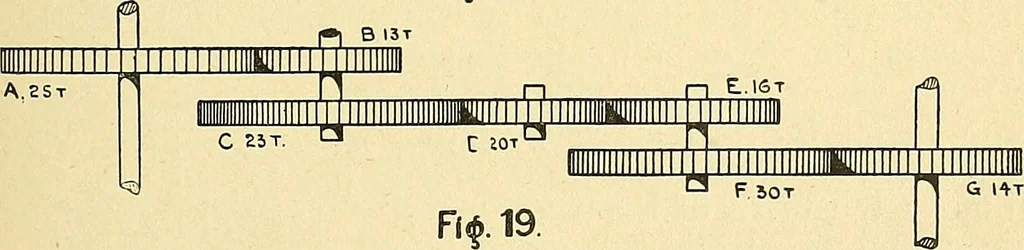

ate thevarious types of driving already given and the calculationsfor them. As sketching any given arrangement is important,it will be advisable to suggest methods of illustrating the gear-ing and pulley driving. One method is simply to draw circles for the wheels,lettering and numbering them and… … showing single lines, as in Fig. i8, or by indicating the widthof the wheels and the teeth, as in Fig. 19. This latter methodis perhaps the best method of sketching gearing, and gives aclear indication of the wheel arrangements. Bevel Gearing.—Bevel wheels are used to drive shafts thatare inclined…
Textile machinery
