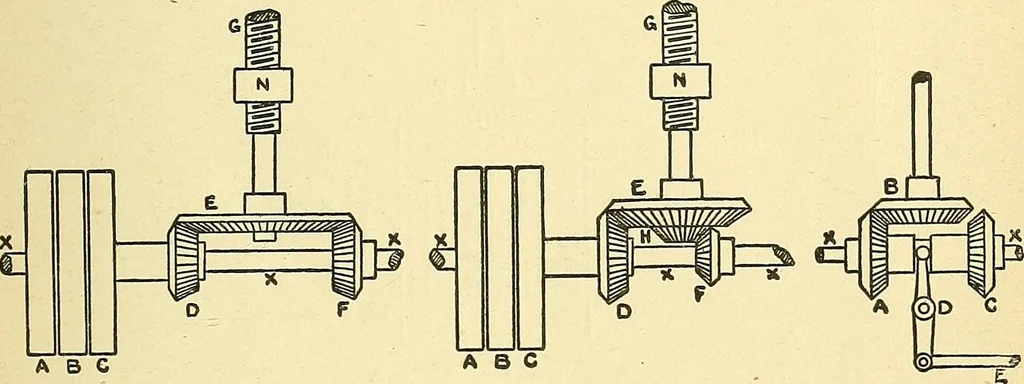

the open belt will be trans-ferred to the loose pulley E. We thus have a quicker speedwhen the open belt is driving than when the crossed beltdrives. Such arrangements are not uncommon and in cotton-millsare frequently met with as double-speed driving in self-actingmules. Students will note a very… … Fi$39. F<«40. Fi$4]. opposite directions, which results in a loss of speed, slippageof belts, and an mcrease in power exerted through A and theshaft X. Fig. 39 exhibits a reversing motion by bevel wheels. Ais a fast pulley on shaft X, B is a loose pulley, whilst C isalso loose on the shaft but…
