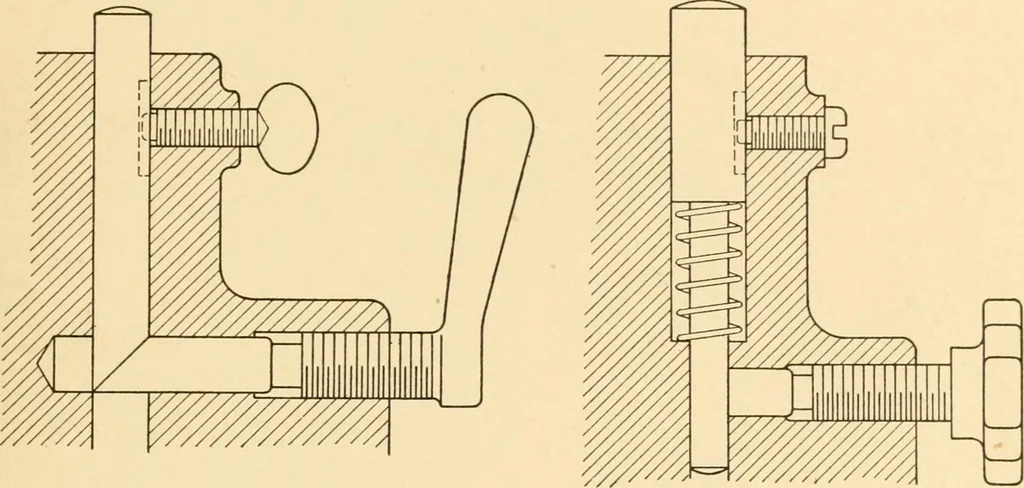

4:. Removal of the Clamping and Supporting Members from the CutterZone. (Safety of Operation.) ^5. Elimination of Clamping Strains from Table of Machine and Ab-sorption of Same in Fixture. ^6. Provision of Mass in Excess of Necessary Rigidity to absorbChatter. JIGS, FIXTURES, AND DETAILS 109 155.… … Fig. 192. Adjustable Support Pins. Such details as bushings, handles, clamping devices, support pins,setting pieces, etc., might be considered. A few parts are given in Figs.
