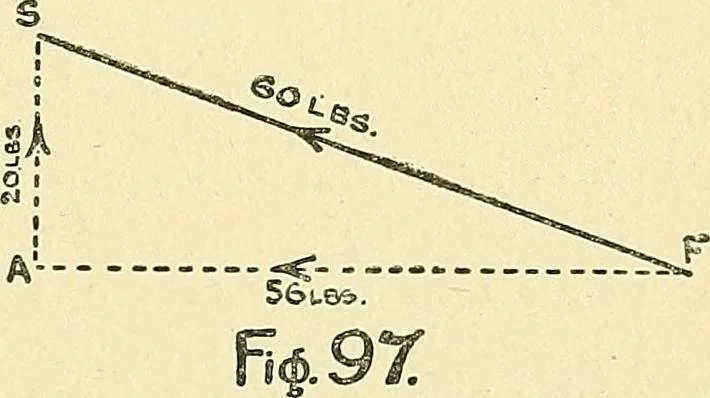

Draw a line SF, as in Fig. 97, parallel to the force of 60 lb. inFig. 96 and to scale. From S and F draw vertical and horizontallines respectively; then SA=2o lb. the vertical component, andFA =56 lb. the horizontal component. This means that theforce has a lifting effect SA on the basket of 20…
