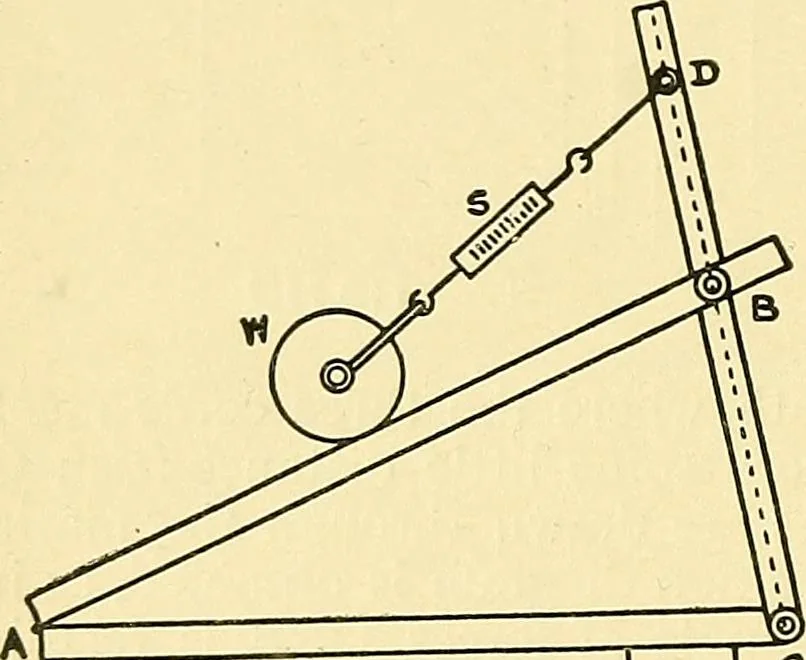

ark as far from C as possibledirectly underneath each cord. Remove the paper and drawlines through each mark as is done in Fig. 117. All the magni-tudes of these forces are known from the weights and springs,so proceed to draw the force diagram as in Fig. 118, when itwill be found that a closed… … Y ^^ ^
