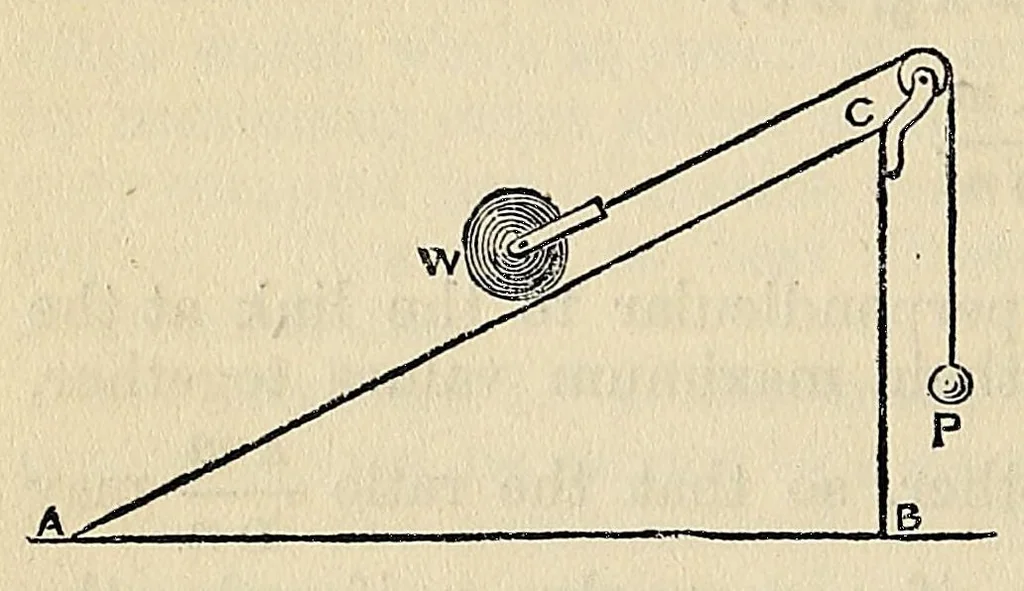

70 INCLINED PLANE AND WEDGE. CHAPTER VII. THE INCLINED PLANE, THE SCREW, THE WEDGE, AND CAMB PRODUCING MOTION BY SLIDING. 118. The Inclined Plane, in mechanism, is considered as a smooth, perfectly hard, and inflexible surface ; the iron rails on an ascending or descending gradient of a railway may… … w c parallel to the plane a c. Then, by Baker's Statics and Dynamics , Art. 7 4, — p : w : : B C : A C, that is, P : w : : the height of the plane : its length, or w x bc m P = - - CO- AC And, by the nature of virtual velocities, Art. 85. (5) Hid . p’s vel. __ w _ a c ^ w’s vel. p e c Example 1. —…
