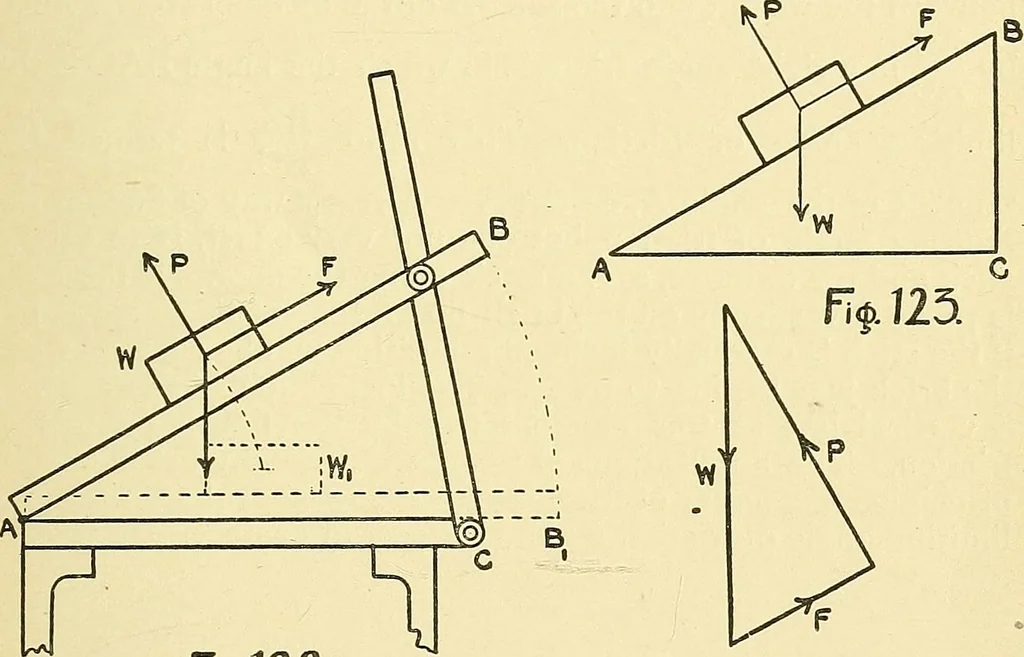

Fig. I2i is drawn parallel to S in Fig. 120and made by scale equal to the reading on the spring. Fromthe lower end of S draw a vertical line W, and from the upperend of S draw P parallel to P in Fig. 120. P and W will meet,and so complete the triangle of forces. Scale W and theweight of the roller… … Fk^UI Fi<^.1U The apparatus in Fig. 122 can be used for a series ofexperiments to illustrate the limiting angle of friction. A weight W rests on the board AB when it is closed and in ahorizontal position. If AB is now gently raised it will at lastoccupy such an inclined position that the weight…
