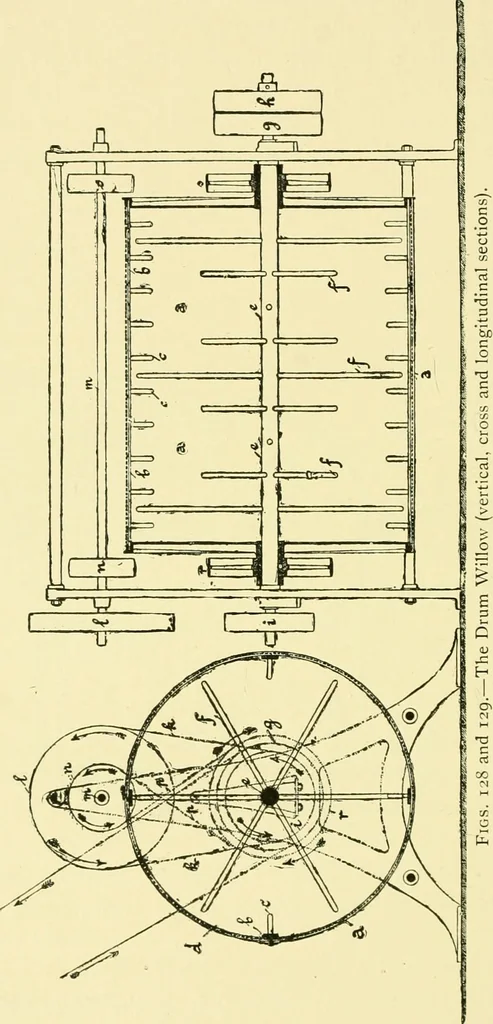

Fig. 127.—The Beater Willow (vertical section). A rotary-drum willow—see Fig. 37—may also be employedfor loosening waste cotton, and freeing same from dust. {b) The Drum Willow. When the waste cotton is very dusty the drum willow orscreening machine, shown in Figs. 128 (cross section) and 129 15… … TEXTILE RAW MATERIALS. 227 (longitudinal section), ma) be advantageously used, thematerial being treated in portions at a time, as with thebeater willow. It is fed through a hinged segment, d, of thecasing into the cylinder, a, which is fitted internally withshort, well polished iron pins, c, set…
