Barker, A. F. (Aldred Farrer), b. 1868, Gardner, Walter Myers, 1862- [from old catalog], Snow, R. [from old catalog], Cook, William Hall. [from old catalog], Bradbury, Fred. [from old catalog] · New York, D. Van Nostrand company · leaf 117

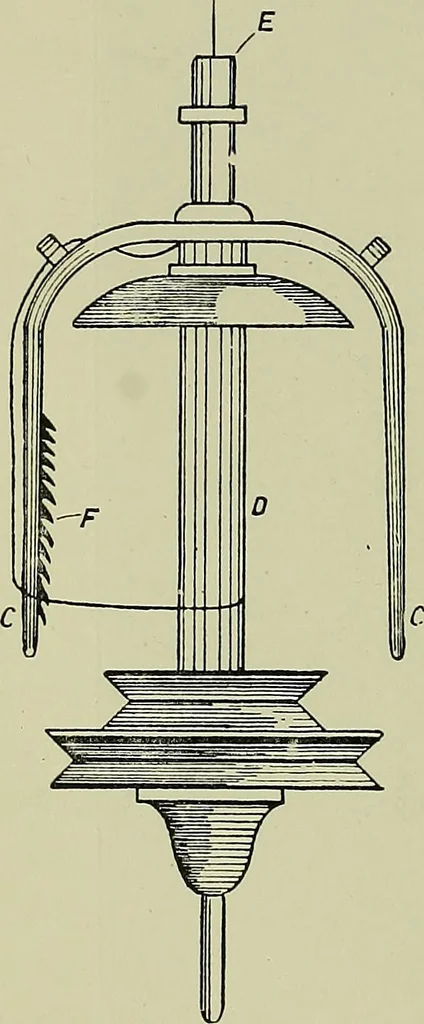

nd machine forcontinuous long fibre spinning ismuch more subtle and compli-cated than that required forshort fibre spinning. The flax wheel (Figs. 9 and9a) consists of a double-groovedwheel (A), worked by a foot-pedal (B), round which two bands pass, one to the groovedflange on the spindle and… … Fig. 9a.—Diagram of Flyerand Bobbin arrangementon the ordinary FlaxWheel. THE PRINCIPLES OF SPINNING 97 the grooved flange or driving wheel of the spindle, it there-fore goes somewhat quicker than the spindle and flyer.The bundle of flax or wool is conveniently placed above theflyer and bobbin, and…
Textile industry and fabrics
