Textile texts for cotton manufacturers : concerning the proper methods of equipping and running mills ... and a full list of the patented cotton machinery introduced and sold by the Draper Company (1903)

Draper, George Otis, 1867-1923 · Hopedale, Mass. : Draper · leaf 294

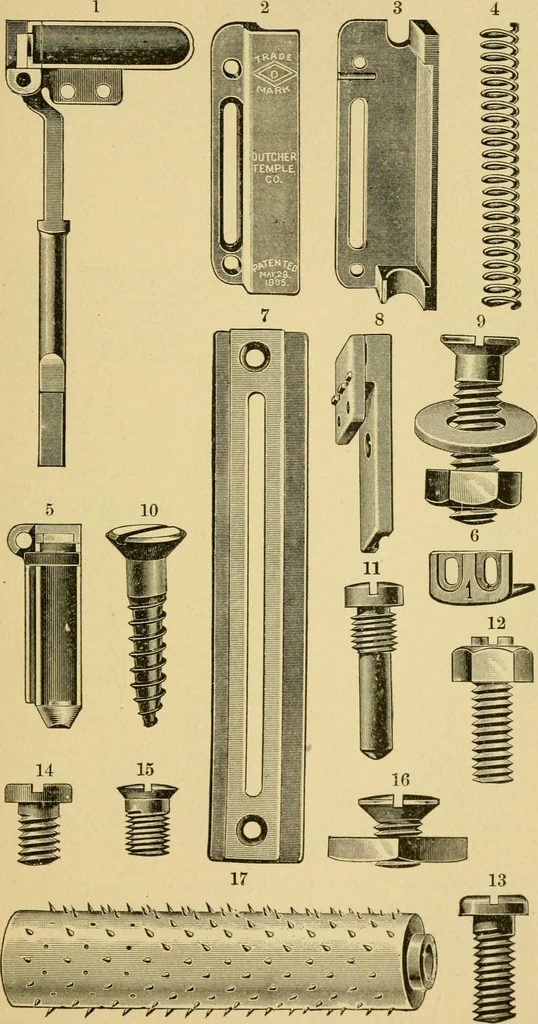

An illustration from Textile texts for cotton manufacturers : concerning the proper methods of equipping and running mills ... and a full list of the patented cotton machinery introduced and sold by the Draper Company, 1903, leaf 294
. 18. Stand Screw. 6. Heel. 14. Heel Screw. 7. Base Plate. 15. Cap Screw. 8. Honan Plate Slide. 16. Slide Screw and Nut. 9. Plate Bolt,Washer for Nut andIron Beam 17. Poll. Parts 5, 6, 7, 8 and 17 are made in difter.eut shapes andsizes, and must be ordered by samj^le or by number on pattern.The… … y t^ i^ y / / Parts of No. 76 and 76}.^ Temple. 272 JV£A VING.

Textile industry
